Description

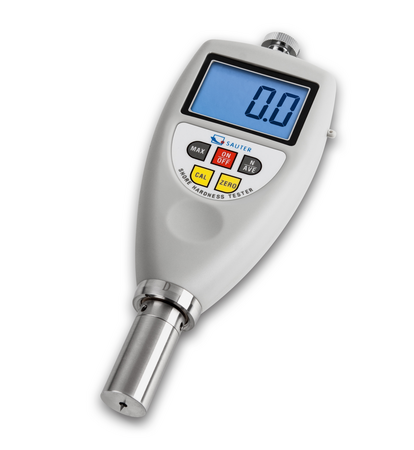

- To measure the hardness of plastics through penetration measurement
- Shore D

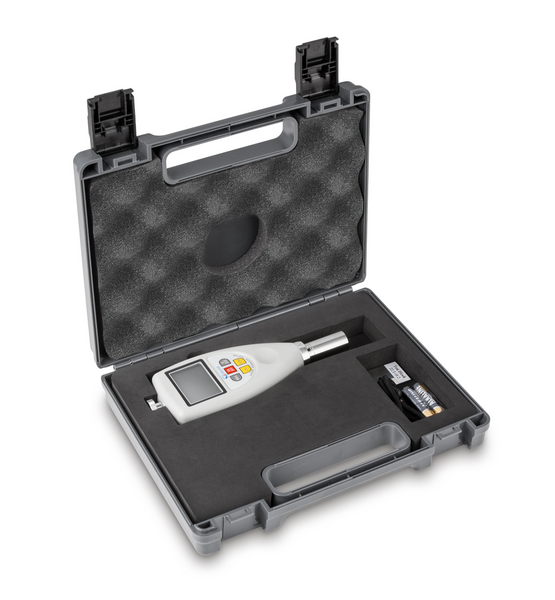

- Delivered in a robust carrying case
- Particularly recommended for internal comparison measurement. Standard calibrations e.g. to DIN 48-4 are not possible because of very narrow standard tolerances
- Can be attached to the test stand SAUTER TI-DL
- Large display with backlight
- Selectable: AUTO-OFF function or continuous operation, battery level indicator
Technical Data
| Hardness scales | Shore D |
| Measuring range Shore [Max] | 100 HD |
| Readability Shore [d] | 0,1 HD |
| Tolerance (% of [Max]) | 1% |
| Scale - Display type | Digital |
| Battery | 2×1.5 V AAA |
| Hold function | |
| Peak function | |
| Function for averaging | |
| Material housing | plastic |
| Measuring probe diameter | 18 mm |
| Test force Hardness measurement | 50 N |
| Product family | HD |
| GTIN/EAN number | 4045761139596 |
