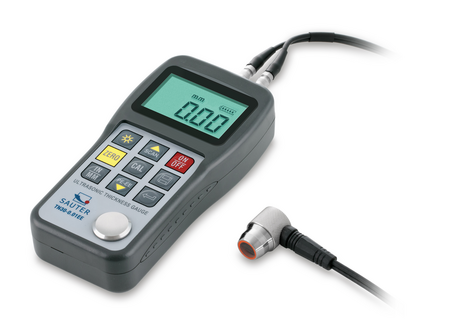

KERN® Ultrasonic Thickness Gauge external TN 60-0.01EE, Material thickness pulse-echo [Max] (mm) 600 mm
Roll over image to zoom in Click on image to zoom
KERN® Ultrasonic Thickness Gauge external TN 60-0.01EE, Material thickness pulse-echo [Max] (mm) 600 mm

KERN® Ultrasonic Thickness Gauge external TN 60-0.01EE, Material thickness pulse-echo [Max] (mm) 600 mm

Kern SKU: TN 60-0.01EE
Price: €1,544.94 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

  • Description

    • External measuring head
    • USB data interface, as standard
    • Scan mode (10 measurements per sec.) or single point measuring mode possible
    • Internal memory for up to 20 files (with up to 100} values per file)
    • Selectable measuring units: mm inch
    • Two measuring modes to determine material thickness:
      - Pulse-Echo mode
      - Echo-Echo mode
    • Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
    • Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see accessories)
    • Scope of delivery: Operating instructions, batteries, external measuring head (∅ 10 mm) and ultrasound contact gel
    • Delivered in a robust carrying case

Technical Data

Material thickness pulse-echo [Max] (mm) 600 mm
Material thickness pulse-echo [Min] (mm) 0,7 mm
Material thickness echo-echo [Max] (mm) 60 mm
Material thickness echo-echo [Min] (mm) 3 mm
Measuring range pulse-echo 0,7 mm – 600 mm
Measuring range echo-echo 3 mm – 60 mm
Readability material thickness [d] (mm) 0,01 mm
Tolerance (% of [Max]) 0,5%
Units mm, inch
Speed of sound [Max] (m/s) 9999 m/s
Speed of sound [Min] (m/s) 1000 m/s
Speed of sound 1000 m/s – 9999 m/s
Measuring head measuring frequency 5 MHz
Battery 2×1.5 V AA
Memory function
Material housing plastic
Dimensions completely mounted (W×D×H) 150×74×32 mm
Interfaces USB-Device
Cable length 0,9 m
