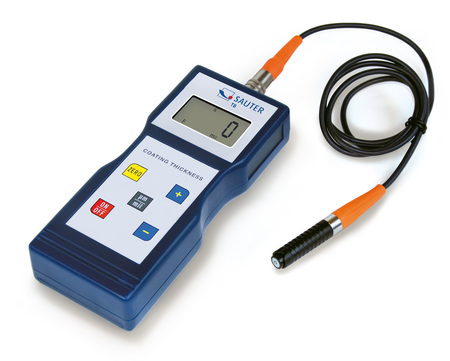

KERN® Coating thickness gauge - FE/NFE intern TB 1000-0.1FN Measuring range coating thickness [d] (µm) 100 µm; 1000 µm
Roll over image to zoom in Click on image to zoom
KERN® Coating thickness gauge - FE/NFE intern TB 1000-0.1FN Measuring range coating thickness [d] (µm) 100 µm; 1000 µm

KERN® Coating thickness gauge - FE/NFE intern TB 1000-0.1FN Measuring range coating thickness [d] (µm) 100 µm; 1000 µm

Kern SKU: TB 1000-0.1FN
Price: €524.59 Excluding VAT
  • External sensor for difficult-to-access measuring points
  • Base plate and calibration foils included
  • Delivered in a robust carrying case
  • Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of 1 % (or less) of the measured value
  • Selectable measuring units: µm inch (mil)
  • Auto-Power-Off

  • Technical Data

    Measuring range coating thickness [d] (µm) 100 µm; 1000 µm
    Readability coating thickness [d] (µm) 0,1 µm; 1 µm
    Tolerance (% of [Max]) 3%
    Units µm, inch (mil)
    Coating thickness gauge sensor type FE, NFE
    Test object thickness coating Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N
    Battery 4×1.5 V AA
    Increase in measurement accuracy possible
    Material housing plastic
    Dimensions completely mounted (W×D×H) 161×69×32 mm
    Cable length 1 m
    Sensor placement position external



Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
