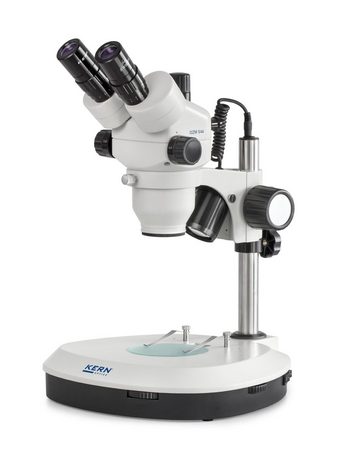

Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted
Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted
Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted
Roll over image to zoom in Click on image to zoom
Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/TransmittedKern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/TransmittedKern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted

Kern OZM 544 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× , Zoom 0,7 x - 4,5 x , 3W LED, Incident/Transmitted

Kern SKU: OZL 544
Price: €1,869.00 Excluding VAT
  • First-class optics and strong illumination combined with a high level of flexibility
  • The KERN OZM-5 series is a range of excellent stereo zoom microscopes with above-average optical features.
  • The ergonomic shape allows a simple, effortless working over a period of several hours.
  • The extraordinarily strong and continuously dimmable 3W LED incident and transmitted illumination ensures a flexible and particularly good level of illumination for your sample.
  • With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images.
  • Light distribution: 0:100
  • Objective: 0,7 x – 4,5 x
  • There is a choice of a binocular model as well as a trinocular model for connecting a camera for documentation purposes and for quality reports
  • The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.
  • A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

  • Technical Data

    Optical system Greenough
    Tube type Trinocular
    Ocular magnifications 10 x
    Ocular visual field 23 mm
    Magnification ratio 6,4:1
    Zoom [Min] 0,7 x
    Zoom [Max] 4,5 x
    Illuminance Reflected light, Transmitted light
    Illumination intensity transmitted light 3 W
    Illumination type transmitted light LED
    Illumination intensity incident light 3 W
    Illumination type incident light LED
    Focusing mechanism coarse drive
    Working distance 110 mm
    Sample height [Max] 130 mm
    Stand type pillar
    Dimension (W×D×H) 330×285×440 mm
    GTIN/EAN number 4045761169302

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
