- The KERN OZL-45 stereo zoom microscope series will impress you with its excellent optical characteristics, easy operation and high level of ergonomic working comfort.
- The Halogen incident and transmitted illumination included as standard guarantees the very best illumination of your sample
- The high-quality optics, together with a large working surface offers the highest level of comfort for your applications.
- As standard this microscope offers you continuous total magnification of 7,5 x–50 x
- The KERN OZL-45 series is available as a binocular version.
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
- A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

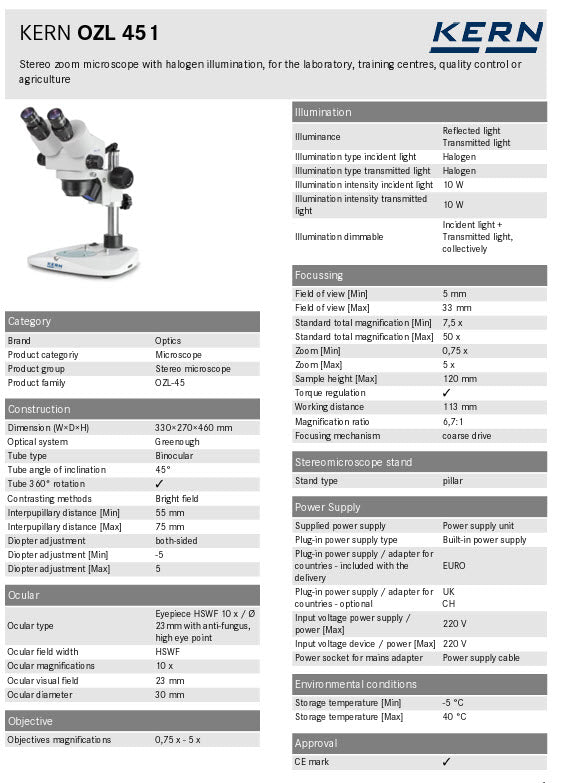

| Optical system | Greenough |
| Tube type | Binocular |
| Ocular magnifications | 10 x |
| Ocular visual field | 23 mm |
| Magnification ratio | 6,7:1 |
| Zoom [Min] | 0,75 x |
| Zoom [Max] | 5 x |
| Illuminance | Reflected light, Transmitted light |
| Illumination intensity transmitted light | 10 W |
| Illumination type transmitted light | Halogen |
| Illumination intensity incident light | 10 W |
| Illumination type incident light | Halogen |
| Focusing mechanism | coarse drive |
| Working distance | 113 mm |
| Sample height [Max] | 120 mm |
| Stand type | pillar |
| Dimension (W×D×H) | 330×270×460 mm |
| GTIN/EAN number | 4045761170384 |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
