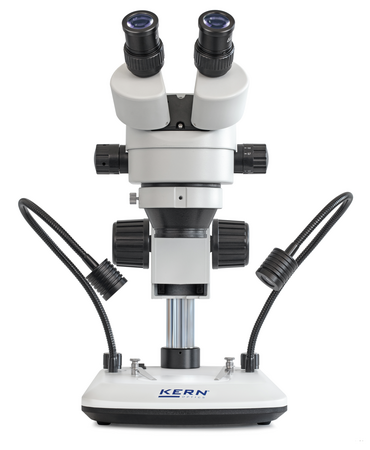

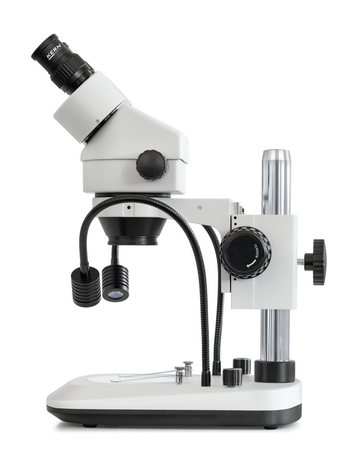

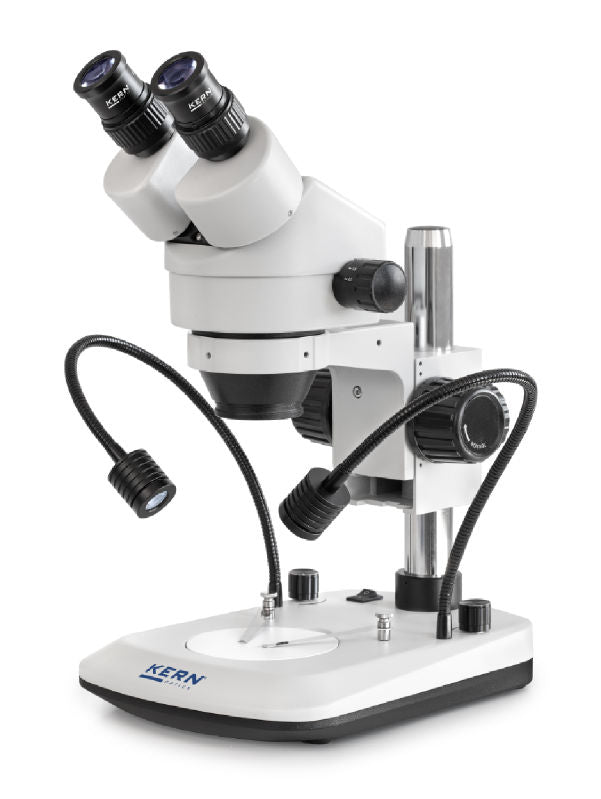

Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)
Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)
Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)
Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)
Roll over image to zoom in Click on image to zoom
Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)

Kern OZL 474 Stereo Zoom Microscopes Trinocular HWF Eyepiece 10× Ø 20.0 mm , Zoom 0,7 x - 4,5 x , Illumination 3W LED (Incident)

Kern SKU: OZL 474
Price: €1,031.00 Excluding VAT
  • The products in the KERN OZL-47 series are stereo zoom microscopes, which will impress you with their easy handling, flexibility as well as their stability and economical price.
  • A highlight is the powerful and infinitely dimmable integrated LED double swan neck illumination unit (incident), which ensures individual illumination which can be adjusted quickly
  • As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
  • As standard this microscope offers you continuous total magnification of 7 x–45 x
  • The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
  • A large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
  • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

  • Technical Data

    Optical system Greenough
    Tube type Trinocular
    Ocular magnifications 10 x
    Ocular visual field 20 mm
    Magnification ratio 6,4:1
    Zoom [Min] 0,7 x
    Zoom [Max] 4,5 x
    Illuminance Reflected light
    Illumination intensity incident light 3 W
    Illumination type incident light LED
    Focusing mechanism coarse drive
    Working distance 105 mm
    Stand type pillar
    Dimension (W×D×H) 300×240×420 mm
    GTIN/EAN number 4045761356696

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
