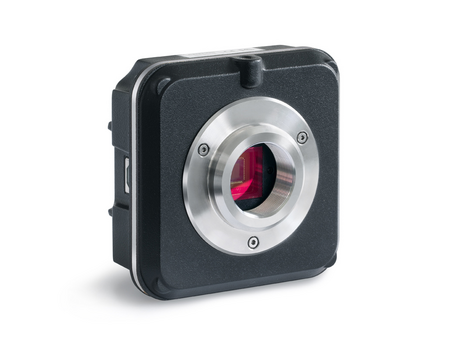

The universal microscope camera can be used anywhere and can be connected to the microscope as well as to a laptop or PC using the USB cable (USB 2.0)
Through the proven CMOS technology, in connection with the USB 2.0 the images are shown quickly and clearly
These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications
Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.The power supply is through the USB cable, which means that no additional power supply is required
As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software
Please order the appropriate C-mount adapter to fit your KERN microscope now
Technical Data
Camera - Resolution
5,1 MP
Camera - Sensor type
Aptina CMOS
Camera - Sensor size
1/2,5"
Camera - Colour depth
Colour
Camera - Pixel size
2,2×2,2 µm
Camera - FPS at Resolution range 1
7 FPS, 2592x1944
Camera - FPS at Resolution range 2
28 FPS, 1296x972
Camera - FPS at Resolution range 3
101 FPS, 648x486
Camera - Exposure time
[Min] 0,2 ms / [Max] 2000 ms
Camera - Exposure method
Rolling Shutter
Interfaces
USB 2.0
Camera- Mounting types
C-mount
Supported operating systems
Win 7, Win 8, Win 10, Win 11
Camera - Applicable software
external (OXM 902)
Dimension (W×D×H)
80×80×45 mm
GTIN/EAN number
4045761190450
