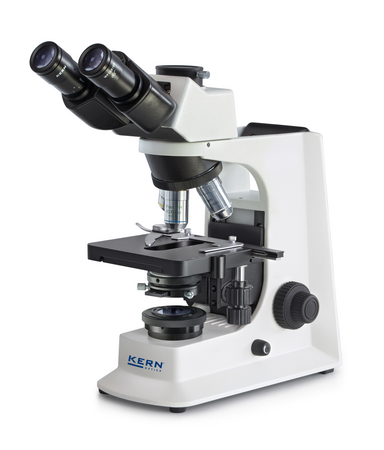

Kern Compound microscope OBL 156 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x
Roll over image to zoom in Click on image to zoom
Kern Compound microscope OBL 156 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x

Kern Compound microscope OBL 156 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x

Kern SKU: OBL 156
Price: €1,988.82 Excluding VAT

  • Applications

    Field of application / Area of application

    • haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment plants, oncology, entomology, veterinary practices, water analysis, breweries

    Applications and samples

    • Specially for extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast

  • Description

    • We have developed this series specially for general applications with phase contrast method. In addition, the stable, modular construction system of the OBL series offers many more options.
    • Strong and continuously dimmable 3W-LED illumination
    • A special fixed, pre-centred phase contrast condenser as well as field diaphragm give you a simplified Köhler illumination and thereby a powerful phase-contrast display of your sample
    • The large mechanical stage and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
    • A large selection of eyepieces, objectives and colour filters, a simple polarizing unit as well as further phase contrast units are available to you as accessories
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

  • Technical Data

    Optical system Infinity
    Tube type Trinocular
    Ocular magnifications 10 x
    Ocular visual field 20 mm
    Standard objectives 4×, 100×, PH 10×, PH 40×
    Lens quality Infinity E-Plan / Plan
    Nosepiece screw-in locations 4
    Illuminance Transmitted light
    Illumination intensity transmitted light 3 W
    Illumination type transmitted light LED
    Illumination type incident light none
    Condensor type Phase contrast condenser
    Kondensor-Apertur 1,25
    Kondensor-Montage fixed
    Focusing mechanism coaxial coarse and fine drive
    Fine drive minimum 0,002 mm
    Dimension (W×D×H) 394×185×377 mm
    GTIN/EAN number 4045761267800

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
