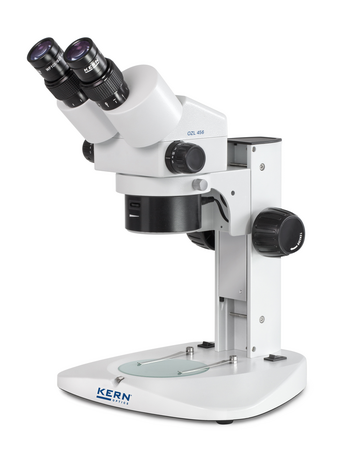

KERN® Stereo Zoom Microscope KERN OZL 456, 0,75 x - 5 x
Roll over image to zoom in Click on image to zoom
KERN® Stereo Zoom Microscope KERN OZL 456, 0,75 x - 5 x

KERN® Stereo Zoom Microscope KERN OZL 456, 0,75 x - 5 x

Kern SKU: OZL 456
Price: €968.47 Excluding VAT

  • Applications

    Field of application / Area of application

    • in vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control

    Applications and samples

    • Samples with focus on three-dimensional impression (depth, thickness), e.g. insects, seeds, circuit boards, components

  • Description

    • The KERN OZL 456 stereo zoom microscope series will impress you with its excellent optical characteristics, easy operation and its integrated LED ring illumination unit
    • The highlight of the KERN OZL 456 is the strong, continuously dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. An LED transmitted light variant is also included
    • With its built-in, top-quality optics and powerful, integrated LED illumination unit, this model is a special all-rounder for all areas of application
    • As standard this microscope offers you continuous total magnification of 7,5 x–50 x
    • As standard, the KERN OZL-45R series is provided as a binocular version with 10× eyepieces with a field of view with a diameter of 23 mm
    • The arm curved stand gives you a large working area as well as a precise adjustment mechanism
    • A large selection of eyepieces as well as auxiliary objectives are available as accessories
    • A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery

  • Technical Data

    Optical system Greenough
    Tube type Binocular
    Ocular magnifications 10 x
    Ocular visual field 23 mm
    Magnification ratio 6,7:1
    Zoom [Min] 0,75 x
    Zoom [Max] 5 x
    Illuminance Reflected light, Transmitted light
    Illumination intensity transmitted light 0,21 W
    Illumination type transmitted light LED
    Illumination intensity incident light 1 W
    Illumination type incident light LED
    Focusing mechanism coarse drive
    Working distance 113 mm
    Sample height [Max] 45 mm
    Stand type mechanical
    Dimension (W×D×H) 320×275×420 mm
    GTIN/EAN number 4045761170414
