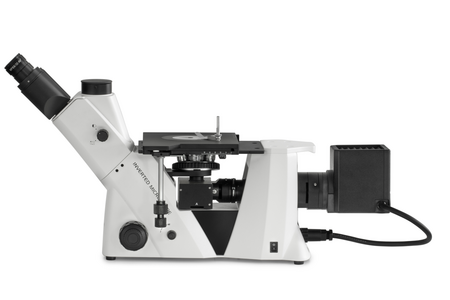

Kern Metallurgical Inverted Microscope OLM 171 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x
Roll over image to zoom in Click on image to zoom
Kern Metallurgical Inverted Microscope OLM 171 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x

Kern Metallurgical Inverted Microscope OLM 171 Optical system Infinity Tube type Trinocular Ocular magnifications 10 x

Kern SKU: OLM 171
Price: €4,381.18 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

  • Applications

    Field of application / Area of application

    • Metallurgy, material testing, quality assurance

    Applications and samples

    • Opaque and thick samples, workpieces (surfaces, fold lines, coatings)

  • Description

    • The KERN OLM range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry
    • Strong and continuously adjustable 50 W Halogen illumination unit ensures the optimum illumination of the materials to be tested
    • As standard, the OLM range is fitted with a trinocular eyepiece tube
    • A simple polarising unit (analyser and polariser) is included with delivery
    • A large mechanical stage is included with delivery as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing.
    • Further options such as, for example, a large selection of objectives can be integrated as accessories
    • A dust cover as well as user instructions are included with the delivery

  • Technical Data

    Optical system Infinity
    Tube type Trinocular
    Ocular magnifications 10 x
    Ocular visual field 22 mm
    Nosepiece screw-in locations 5
    Illuminance Reflected light
    Illumination intensity incident light 50 W
    Illumination type incident light Halogen
    Condensor type Standard
    Kondensor-Montage fixed
    Focusing mechanism coaxial coarse and fine drive
    Fine drive minimum 0,002 mm
    Dimension (W×D×H) 747×271×379 mm
    GTIN/EAN number 4045761267602
