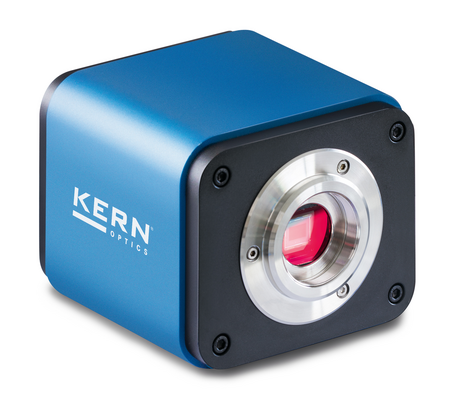

Kern HDMI/USB Digital Cameras ODC 852 Resolution 5MP Size 1/1,8" CMOS Sensor Pixel size 2,4×2,4 µm
Roll over image to zoom in Click on image to zoom
Kern HDMI/USB Digital Cameras ODC 852 Resolution 5MP Size 1/1,8" CMOS Sensor Pixel size 2,4×2,4 µm

Kern HDMI/USB Digital Cameras ODC 852 Resolution 5MP Size 1/1,8" CMOS Sensor Pixel size 2,4×2,4 µm

Kern SKU: ODC 852
Price: €1,112.59 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Description

  • The HDMI autofocus camera ODC 852 offers you a perfect, effective solution for modern microscopy. The autofocus function automatically detects and adjusts the focus level so that you always have a razor-sharp image. Ideal for all applications in connection with a KERN stereo microscope
  • Realtime images n the ODC 852 can be transferred to an HDMI-compatible display device using the HDMI connection and they can also be stored on the SD card which was delivered with the product. As an alternative, data can also be transferred using the WiFi module (ODC 852) to a PC or laptop in combination with the KERN OXM 902 software which is included with the delivery
  • Power supply is from an external 12 V power unit
  • Scope of delivery ODC 852: Camera, USB mouse, USB 2.0 cable (length: 2 m), HDMI cable (length: 2 m), SD card (16 GB), WiFi adapter and camera software Microscope VIS Pro KERN OXM 902
  • Please order the appropriate C-mount adapter to fit your KERN microscope now

  • Technical Data

    Camera - Resolution 5 MP
    Camera - Sensor type Sony CMOS
    Camera - Sensor size 1/1,8"
    Camera - Colour depth Colour
    Camera - Pixel size 2,4×2,4 µm
    Camera - FPS at Resolution range 1 30 FPS, 1920x1080
    Camera - FPS at Resolution range 2 25 FPS, 1920x1080
    Camera - Exposure time [Min] 0,03 ms / [Max] 918 ms
    Camera - Exposure method Rolling Shutter
    Interfaces WiFi standard, USB 2.0, HDMI, SD card slot
    Camera- Mounting types C-mount
    Supported operating systems Win 7, Win 8, Win 10, Win 11
    Camera - Applicable software external (OXM 902)
    Dimension (W×D×H) 92×68×68 mm

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
