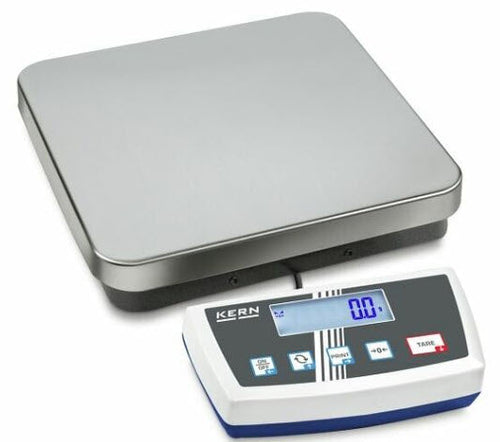

- Robust platform scales can be used as parcel, industrial, and counting scales.
- Display unit with numeral height 21 mm can be remote from platform; can be stood or mounted using flexible cable.
- Robust platform with a protective hood over the display unit.
- Simple, self-explanatory user guidance with (yes/no) dialogue in the display.
- Selectable mains or battery operation (battery available on request).
- Units of weight (e. g. screw weight) can be freely programmed.
- With automatic reference optimisation for exact counting.
-
Adjustment programme CAL: For accuracy adjustment (required calibration weight available on request).
-
Quantity counting: Reference quantities selectable 1, 5, 10, 20 pieces.
- Display selectable between pieces and weight.
-
Numeric tare preference for well-known container weight. Useful for filling quantities.
-
Percentage determination: Display of deviation from the reference weight in % instead of in grammes.
- KERN Universal Port (KUP): allows the connection of external KUP interface adapters (not included) such as RS-232, USB for exchanging data and control commands, without installation effort.
Supplied with:
Mains adapter 230 V / 50 Hz and protective hood.
Optional extras:
Internal and external rechargeable battery, calibration weight, wall attachments, printer, stand and interface adapter such as RS-232, USB on request.
Technical Data
| maximum weighing range |
|
0 kg - 36 kg |
| Scale divisions |
|
0.2 g |
| Number height display unit |
|
18 mm |
| Reproducibility |
|
0.2 g |
| Manufacturer's designation |
|
DS |
| Settling time |
|
3 s |
| Minimum unit weight |
|
2 g |
| Dimensions of weighing plate |
|
308×318 mm |
| Power supply |
|
Mains operated |
| Net weight |
|
9.5 kg |
| Type of product |
|
Platform balance |
