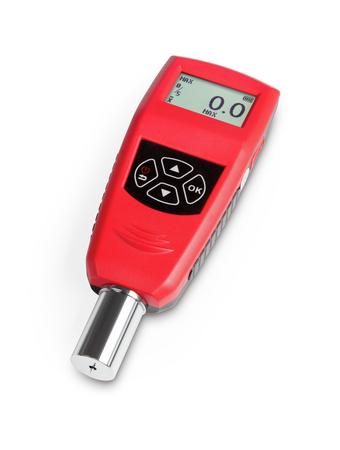

KERN® Digital Shore hardness tester HED 100 Shore D

Name: KERN® Digital Shore hardness tester HED 100 Shore D
Brand: Kern
SKU: HED 100
Price: 864.71 EUR
Availability: InStock

KernSKU: HED 100

Price:

€864.71

Quantity:

To measure the hardness of plastics through penetration measurement
Different measuring modes: Average value, maximum value, chronological sequence
Limit alarm function, which triggers an audible and visual signal when the value goes below or above the defined limits
Entering the workpiece number is possible
Setting the measuring time from 0 to 99 seconds
Recommended for internal comparison measurement
Can be attached to the test stand SAUTER TI-HED to improve the measurement result
Large display with backlight
Battery status indicator
USB data interface, as standard
Delivered in a robust carrying case

Technical Data

Hardness scales	Shore D
Measuring range Shore [Max]	100 HD
Readability Shore [d]	0,1 HD
Tolerance (% of [Max])	1%
Hold function
Peak function
Function for averaging
Interfaces	USB-Device
Material housing	plastic
Measuring probe diameter	18 mm
Test force Hardness measurement	50 N
Product family	HE
GTIN/EAN number	4045761274020
