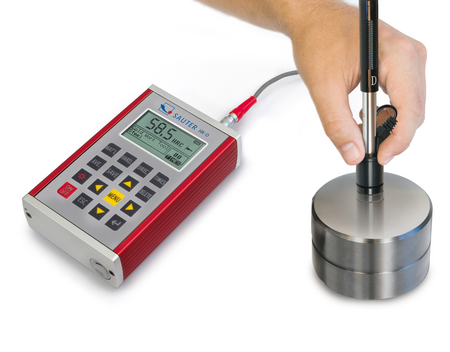

KERN® Leeb hardness tester HK-D Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC
Roll over image to zoom in Click on image to zoom
KERN® Leeb hardness tester HK-D Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC

KERN® Leeb hardness tester HK-D Measuring range Leeb 170 – 960, Units HL, HV, HB, HRB, HRC

Kern SKU: HK-D
Price: €1,637.18 Excluding VAT

  • Description

    • External impact sensor standard (Type D)
    • Mobility: In comparison with stationary table-top devices and testing devices with an internal sensor, using the SAUTER HK-D offers the highest level of mobility and flexibility
    • All measurement directions possible (360°) thanks to an automatic compensation function
    • Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB
    • Internal memory for up to 600 data groups, with up to 32 values per group forming the average value of the group
    • Mini statistics function: displays the measured result, the average value, the impact direction, date and time
    • Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
    • Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
    • Matrix display: Backlit multi-function display for all relevant functions at a glance
    • Robust metal housing
    • Delivered in a robust carrying case



Technical Data

Measuring range Leeb 170 – 960
Readability [d] hardness (Hlx) 1
Tolerance (% of [Max]) 1%
Units HL, HV, HB, HRB, HRC
Hardness scales HLD
Test object thickness [Min] 3 mm
Test object minimum weight [Min] 2 kg
Battery 2×1.5 V AA
Memory function yes
Statistic functiony yes
Function for averaging yes
Interfaces USB-Device
Material housing cast aluminium
Measuring probe diameter 2 cm
Measuring probe length 14,6 cm
Product family HK
GTIN/EAN number 4045761139473
