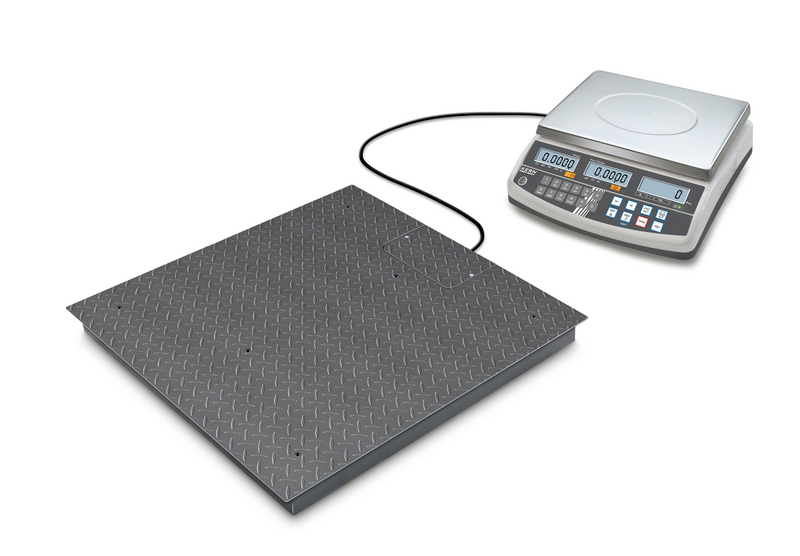

- The highly accurate KERN CCS counting system can replace a whole range of individual balances, efficiently and at a reasonable price
Reference scale KERN CFS 6K0.1
- This professional counting scale, which can also be used as a stand-alone scale, meets the highest demands for accuracy, weighing capacity and volume of items, by being connected to a high-capacity weighing bridge
- Programmable using numerical key pad:
- required reference quantity
- known reference weight
- Three displays for weight display, reference weight, total pieces
-
Memory (PLU) for items with additional text, reference weight and tare weight, e.g. of a container
- Fill-to-target function: Target count or target weight can be programmed. When the target weight is reached there is an audible and visual signal
- Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
- Protective working cover included with delivery
Quantity scale KERN KIP-V20M
- The high-accuracy quantity counting takes place on the weighing bridge. In this way even the smallest of parts can be counted in large volumes
- Weighing bridge made of non-slip corrugated steel plate, lacquered
- 4 load cells, steel, silicone-coated, IP67
-
Technical Data
| Quantity scale - Weighing capacity [Max] |
600 kg |
| Reference scale - Readability [d] |
100 mg |
| Units |
kg, lb |
| Dimensions weighing platform (W×D×H) |
1200×1500×108 mm |
| Dimensions weighing surface (W×D) |
1200×1500 mm |
| Reproducibility |
0,0002 kg |
| Reference scale - Linearity |
200 mg |
| Quantity scale - Linearity |
0,4 kg |
| Ambient temperature |
0 °C – 40 °C |
| Smallest piece weight when piece counting - normal conditions |
1 g |
| Display type |
LCD |
| Display digit height |
20 mm |
| Material weighing plate |
metal, lacquered |
| Display device cable length |
5 m |
| Material housing |
plastic |
| Net weight approx. |
110 kg |
| IP protection - display |
IP23 |
| IP protection - platform |
IP65 |
| IP protection - load cell |
IP65 |
| Product group |
Counting system |
| GTIN/EAN number |
4045761235854 |
