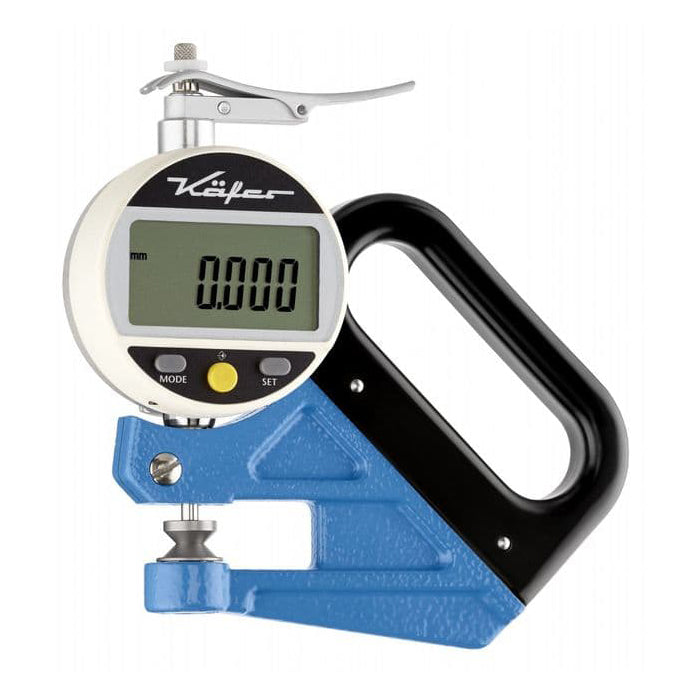

A high accuracy digital thickness gauge, mainly used to measure the thickness of foils, it offers the following features:
- A rigid frame for stability, ease of use and accuracy
- Insulated handle to prevent heat transfer from the hand of the user to the sensitive mechanical parts
- Easy to read digital display
- Standard contact force of 2.0N, can be supplied with a reduced contact force of 0.7N
- Standard contact points: 6.35mm ø flat
- Optional contact points: 10mm ø flat, upper contact point convex r 15 or r 40, lower contact point 6.35mm ø flat, lower contact point r 15, spherical
- Resolution: 0.001 mm (0.00005″)
- Accuracy: 0.003mm (0.0001″)
- Jaw depth: 30mm
- Bezel diameter: 30mm
- Output: RS 232 or USB
- LCD: Height of digits is 11mm
- Standard contact points: 6.35mm ø flat
- Optional contact points available
- MPN: FD 1000/30-3
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
