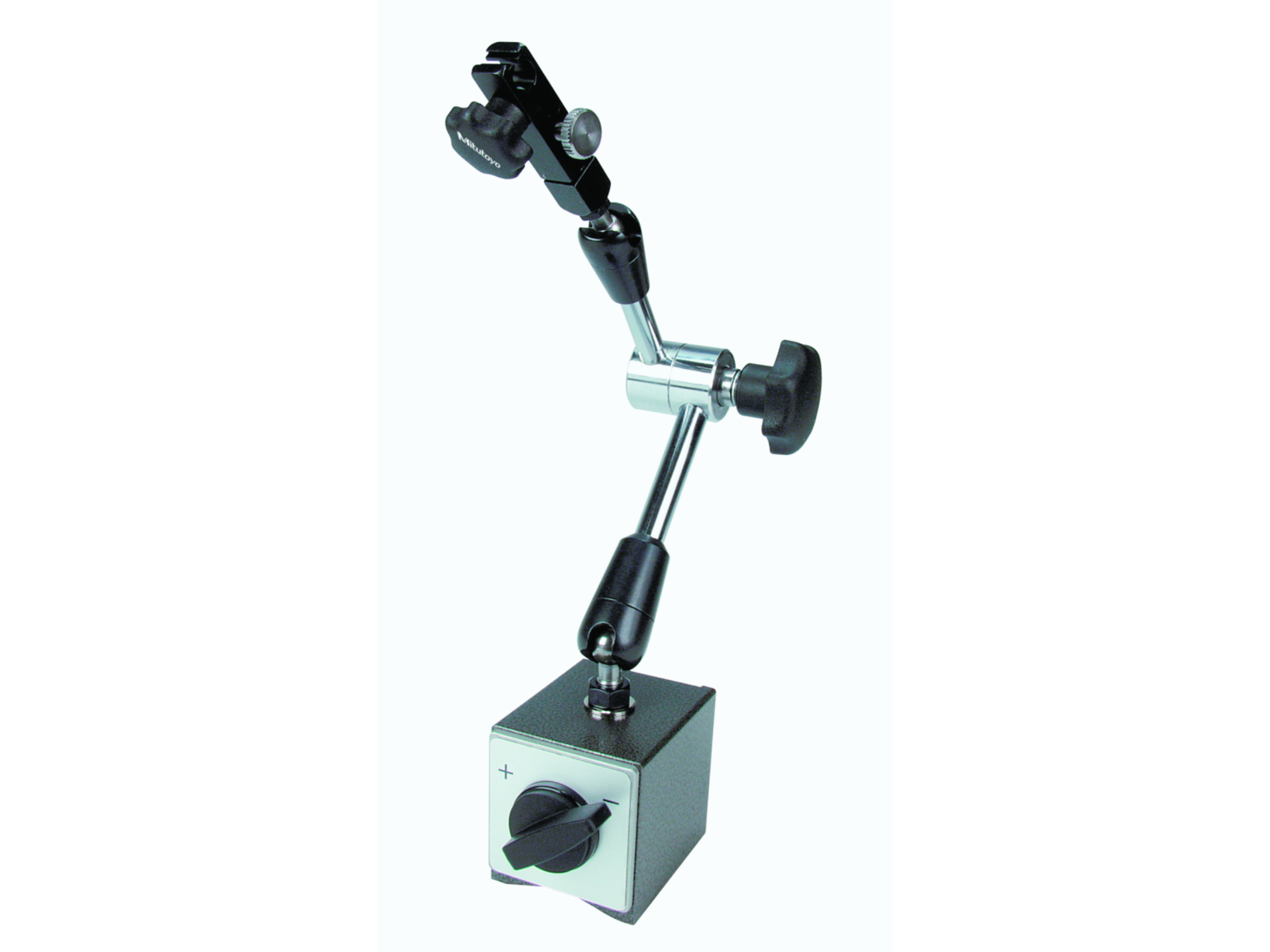

With a mechanical locking system and fine adjustment, allows a dial indicator to be fixed in any position.

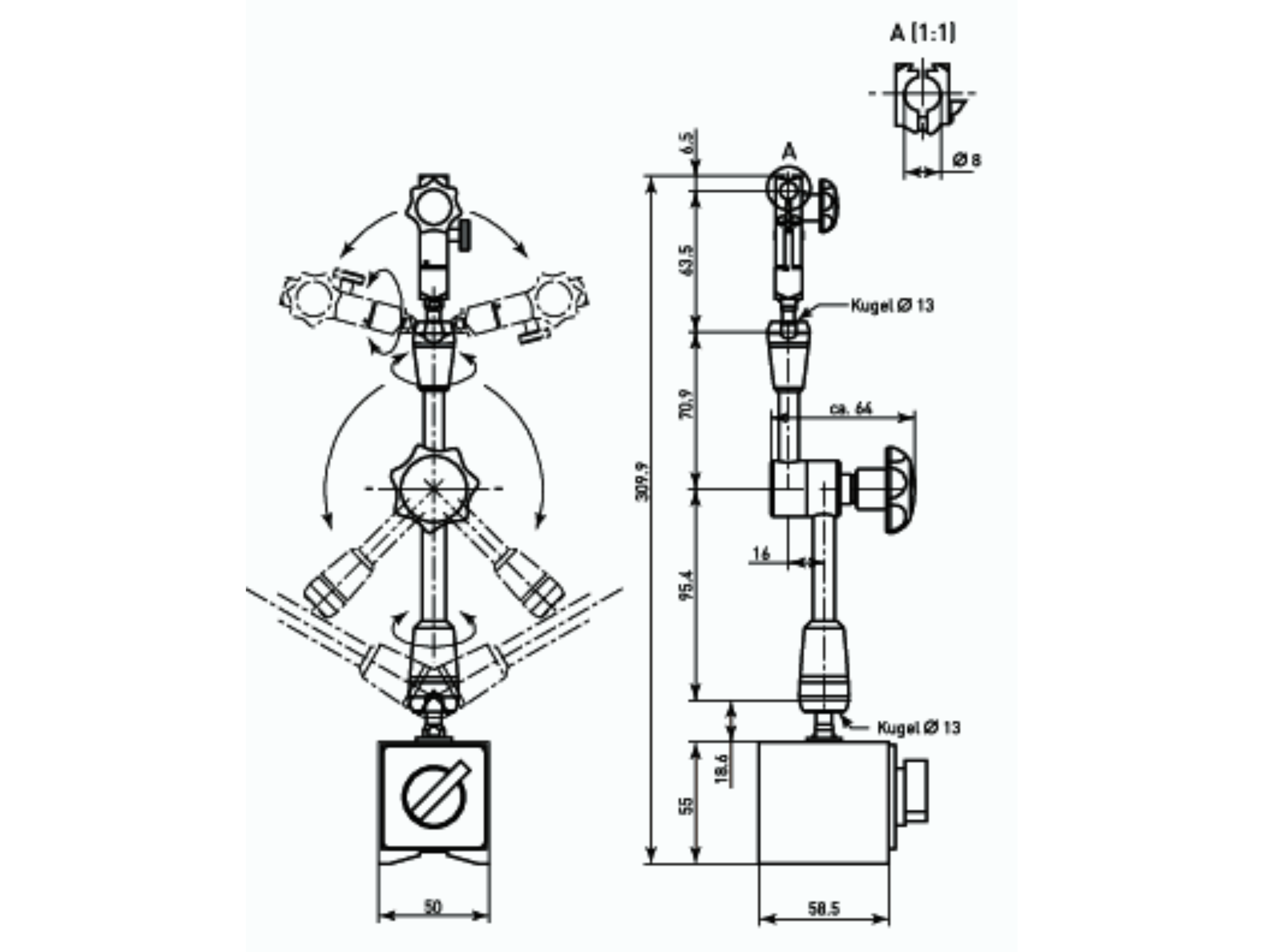

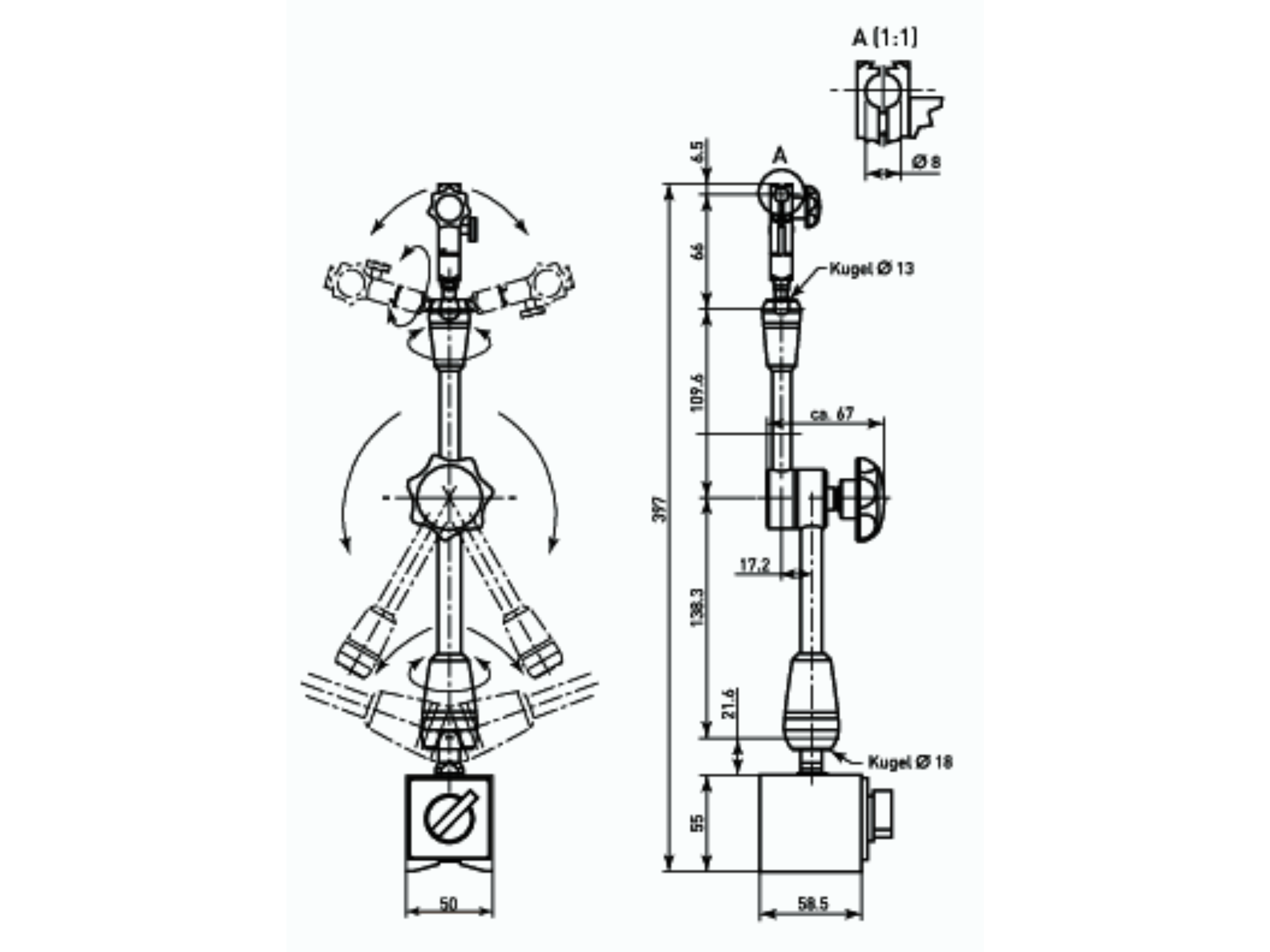

Specification
Clamping device: magneticMagnetic force (vertical): 750 N
Magnetic stand size (LXWXH): 58.5 x 50 x 55 mm
Total height: 397 mm
Stem hole ø: 8 mm dovetail
Working radius: 280 mm
Thread Arm/Base: M8 x 1.25
Mass: 1.85 kg
All images are for representation only.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
