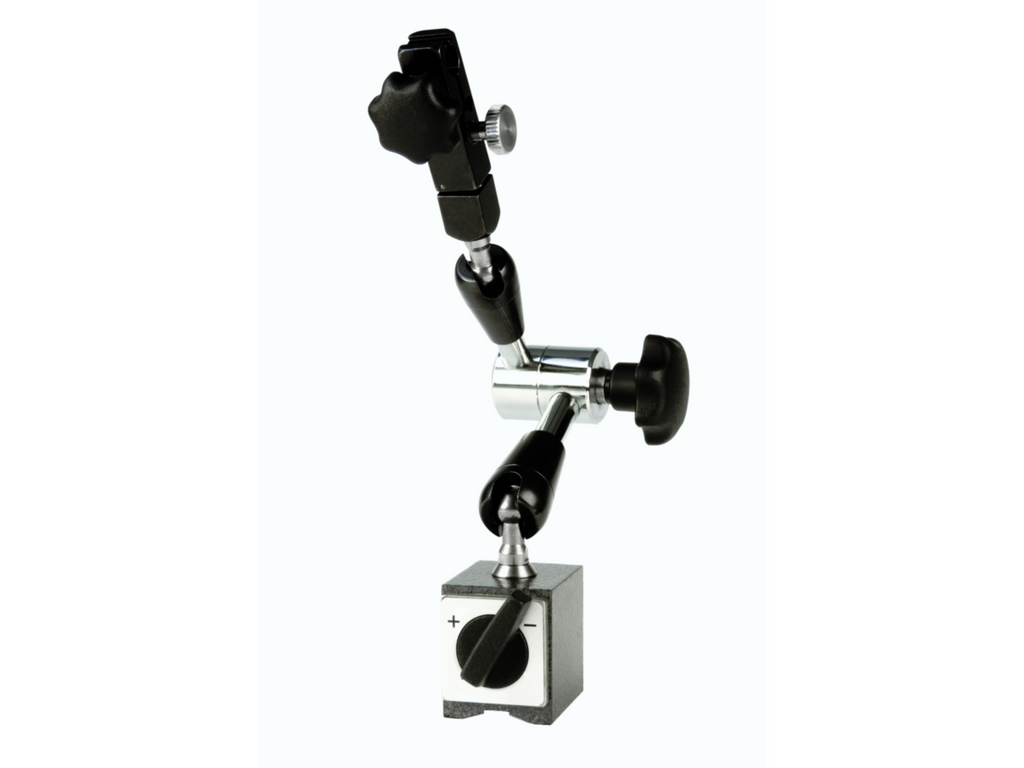

With a mechanical locking system and fine adjustment, allows a dial indicator to be fixed in any position.

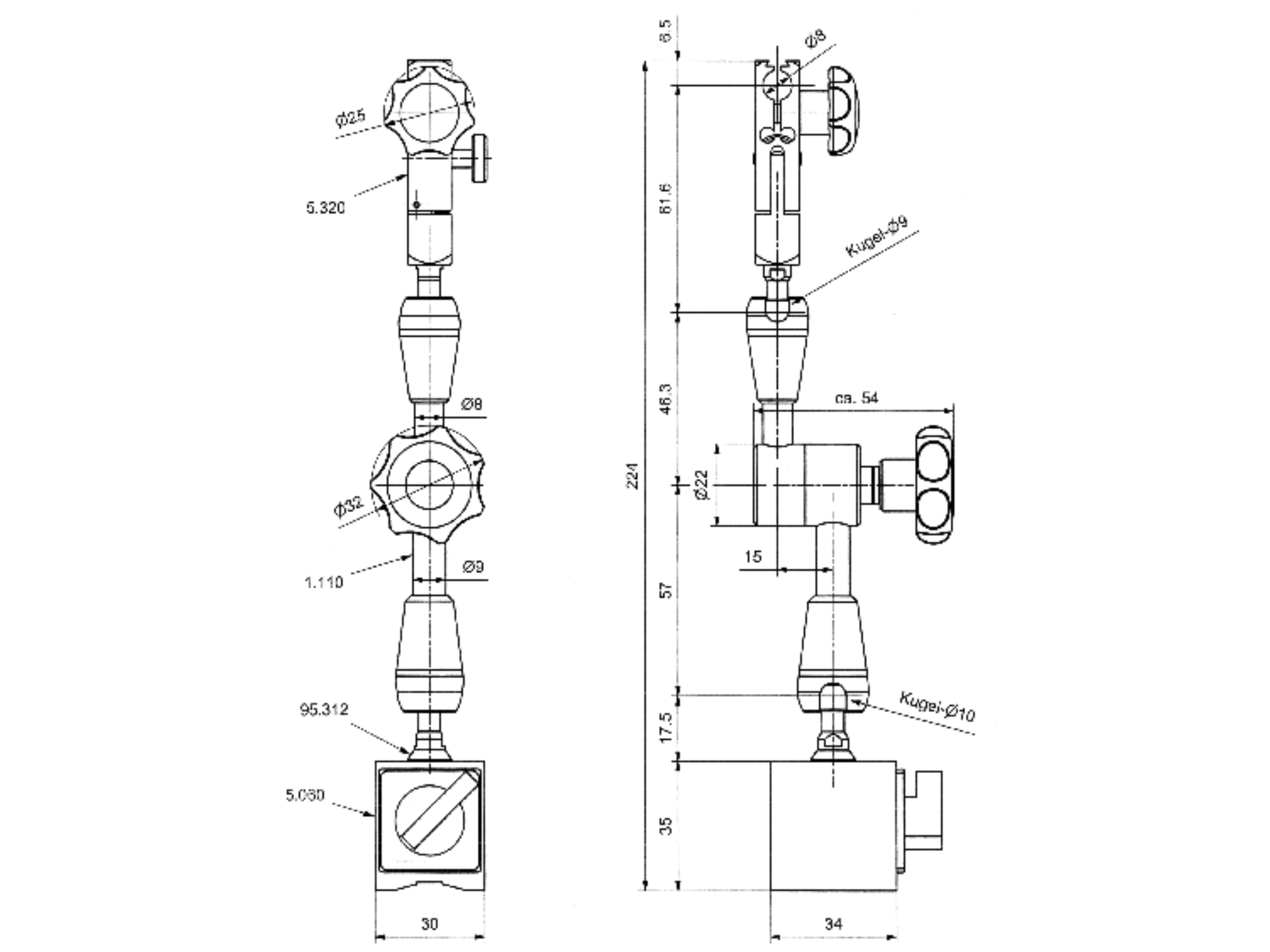

Specification
Clamping device: magneticMagnetic force (vertical): 300 N
Magnetic stand size (LXWXH): 36 x 30 x 35 mm
Total height: 220 mm
Fine adjustment: 1.3 mm per rotation
Stem hole ø: 8 mm dovetail
Working radius: 130 mm
Thread Arm/Base: M6 x 1
Mass: 0.45 kg
All images are for representation only.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
