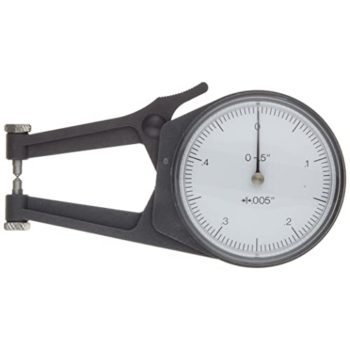

mitutoyo 209-789 External dial caliper gauge external measurement 0-.500″
Roll over image to zoom in Click on image to zoom
mitutoyo 209-789 External dial caliper gauge external measurement 0-.500″

mitutoyo 209-789 External dial caliper gauge external measurement 0-.500″

Mitutoyo SKU: 209-789
List price: €224.00 Offer price: €173.00 Excluding VAT

Optional Services

Add your Gauge ID, asset/serial number, company name, logo or QR code.

209-789 Mitutoyo Dial Caliper Gage – External Type: 0-.500″

The Mitutoyo 209-789 External Dial Caliper Gage has the following specifications:

  • Range: 0-.500″
  • Graduation: .005″
  • Accuracy+/- : .005″
  • Max. Measuring Depth L: 1.38″
  • Length Hb: —
  • Length Hf: —
  • Measuring Contact Type: P/K
  • Size: 2, Chisel RO. 5mm
  • Mass: 40g

Types of Contacts Upper/Lower:

  • S: R 0.4 / R 0.4
  • K/K: 2mm Ball /2mm Ball or 1mm Ball / 1mm Ball
  • R/S: R 0.4 / 1.5mm Diameter Carbide Ball
  • RK/K: 1.5mm Ball / 1.5mm Ball
  • S/R: R 0.75 / 2mm Ball
  • R: 2mm / 2.5mm Ball
  • T: 6mm Disc
  • PR: 2mm Diameter / R 0.5
  • PK: 2mm Diameter / Chisel R 0.5

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document mitutoyo 209-789 External dial caliper gauge external measurement 0-.500″ Click to open the PDF document
