Mitutoyo SKU: 117-102
List price: €321.00 Offer price: €249.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

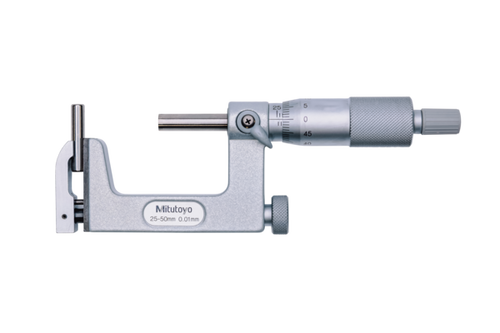

A Mitutoyo non-digital micrometer that accepts easily interchangeable anvils to enable a wide variety of measurement, such as tubing thickness, shoulder-edge distance and rivet height. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:

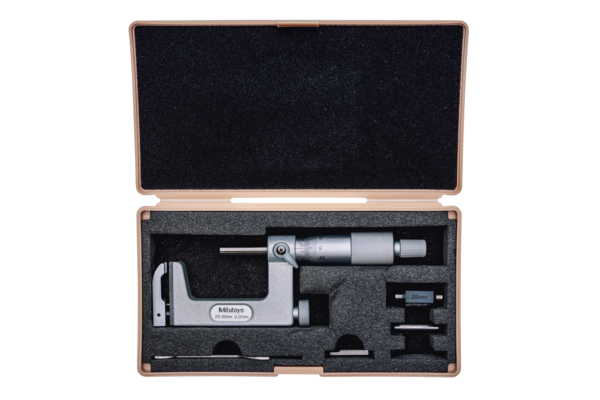

Including box, spanner, setting standard, flat anvil 201216, rod anvil 201379
Inch-Metric:
Metric
Range:
25 - 50 mm
Graduation:
0,01 mm
Spindle feed error:
3 µm
Flatness:
0,6 μm (spindle),
2 μm (anvil)
Parallelism:
3 μm
Measuring face:
Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Content of Set:
Anvils 201379, 201216
Mass:
320 g
