Inspec Blade Micrometer 0-25mm x.01mm Code 205-01-000 Mechanical Type B
Inspec Blade Micrometer 0-25mm x.01mm Code 205-01-000 Mechanical Type B
Roll over image to zoom in Click on image to zoom
Inspec Blade Micrometer 0-25mm x.01mm Code 205-01-000 Mechanical Type BInspec Blade Micrometer 0-25mm x.01mm Code 205-01-000 Mechanical Type B

Inspec Blade Micrometer 0-25mm x.01mm Code 205-01-000 Mechanical Type B

Inspec SKU: 205-01-000
Price: €150.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

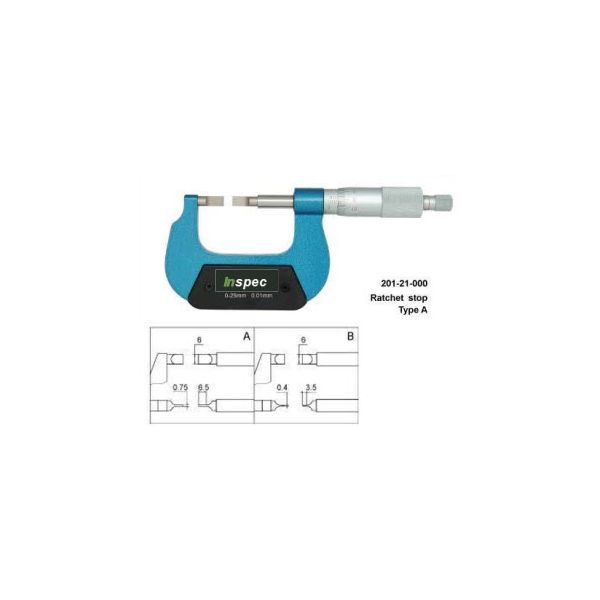

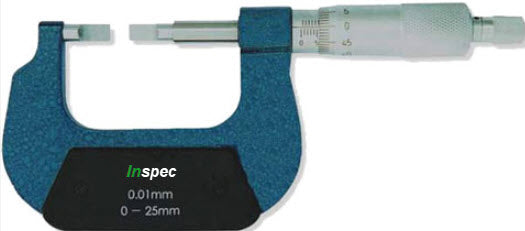

    • Non-rotating spindle, blade anvil and spindle.
      Typically used to measure groove diameter on shafts or
      other narrow recess.
    • with blade tip 0.4 mm x 3.5 mm
    • measuring range: 0~25 mm
    • Graduation: 0.01 mm
    • accuracy: .005mm
    • non-rotating spindle Ø 6.5 mm/.250"
    • frame coated, thimble chrome finished
    • ratchet thimble
    • thermally insulated
    • Same as Insize 3232-25 or M&W275-01


Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
