mm/inch conversion at any position Zero-setting at any position Universal purposes with two types of measuring faces Suited for measuring thickness of paper film wire sheet metal jewelry leather and similar materials Can fast trace MAX/MIN value

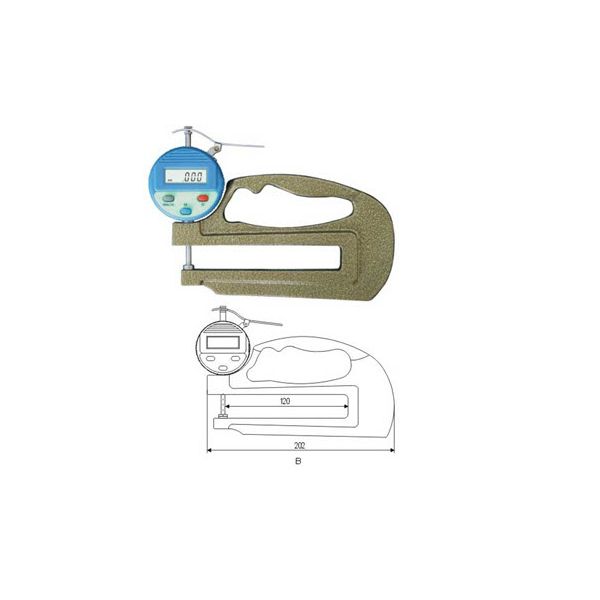

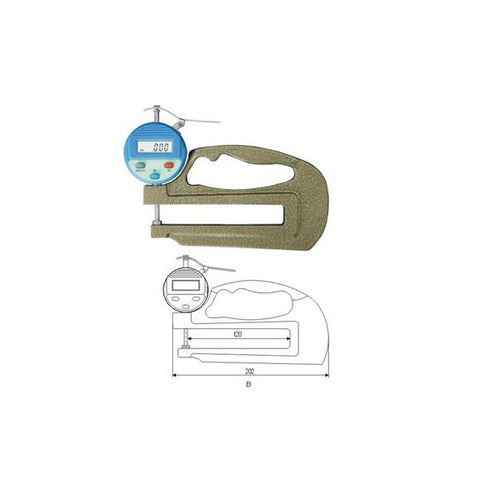

Inspec 316-151 Snap Gauge Description : Inspec Digital Thickness Gauge Range : 0-10mm Resolution : .01mm/.0005" Throat depth : 120mm Accuracy : .03mm
| Type | Snap Gauges |
|---|---|
| Measurement units | Inch/Metric |
| Thickness Gauge Type | Standard Thickness Gauge |
| Thickness Gauge Range | 0-.4"/0-10mm |
| Material | Steel |
| Throat depth | 120mm |
| Force | 1.5N or less |
| Resolution | .0005"/.01mm |
| SPC Output | No |
| Accuracy | +/-.0015"/.03mm |
| Digital, Non-Digital | Digital |
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
