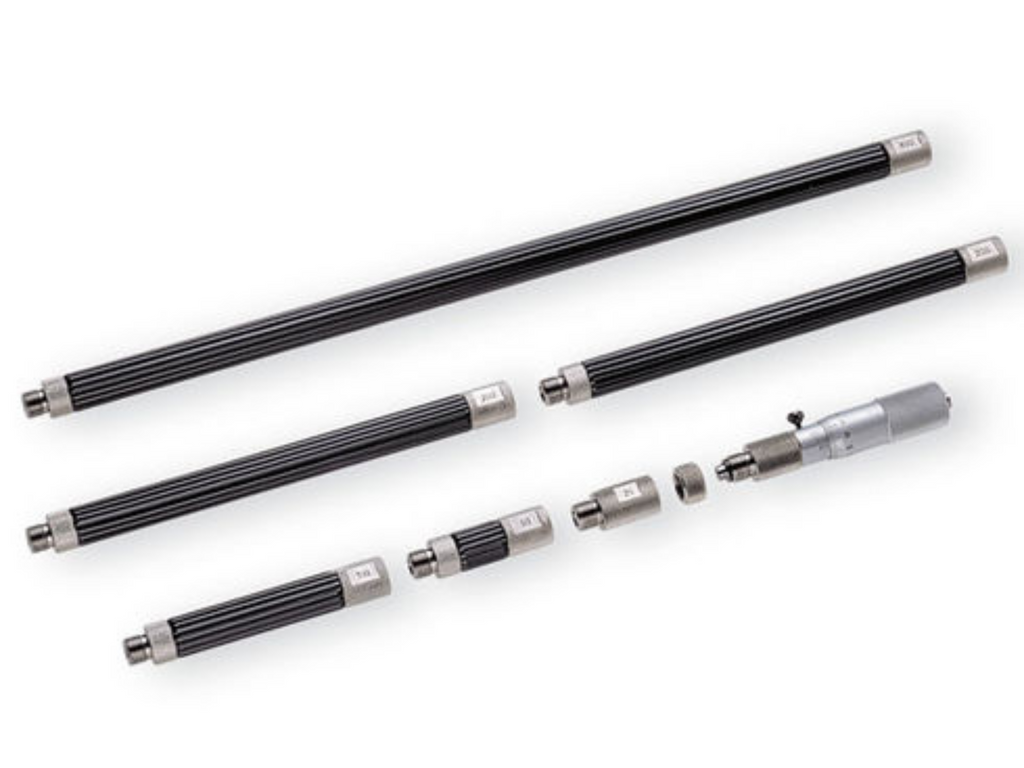

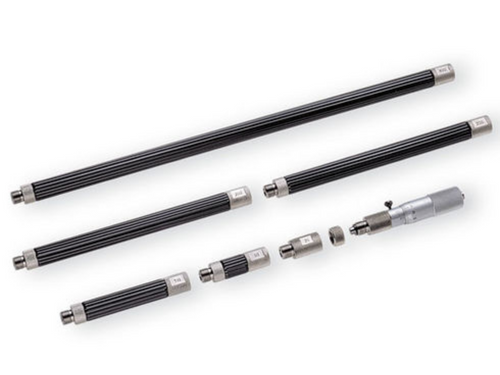

Steinmeyer Inside (Stick) Micrometer Set 100-500mm (25mm Range) 76938500720

Steinmeyer Inside Micrometer 561 (modular)
Internal measuring gauge 561, modular, with gauge block extensions up to 6100mm.

Description

• Measuring Head 100-125mm (Extension sets must be ordered separately)
• Extension Elements 25,50,100,200mm

View Data Sheet

• for precise measuring of inner dimensions up to 2100 mm
• can be used for different measuring areas due to screw-on gauge block extensions
• Precise measurements with lapped measuring faces
• Fixing the spindle in the desired place possible with locking lever
• Easy to handle with CFK-extensions
• Less wear of measuring faces due to carbide measuring faces

Technical Data

• Graduation 0,01 mm
• Spindle thread pitch 0,5 mm
• Measuring range 15 / 25 mm
• Thimble diameter 19 mm

All images are for representation only.
