Steinmeyer Inside (Stick) Digital Micrometer Set 150-950mm 76082600420
Steinmeyer Inside (Stick) Digital Micrometer Set 150-950mm 76082600420
Roll over image to zoom in Click on image to zoom
Steinmeyer Inside (Stick) Digital Micrometer Set 150-950mm 76082600420Steinmeyer Inside (Stick) Digital Micrometer Set 150-950mm 76082600420

Steinmeyer Inside (Stick) Digital Micrometer Set 150-950mm 76082600420

Steinmeyer SKU: 76082600420
Price: €2,260.54 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

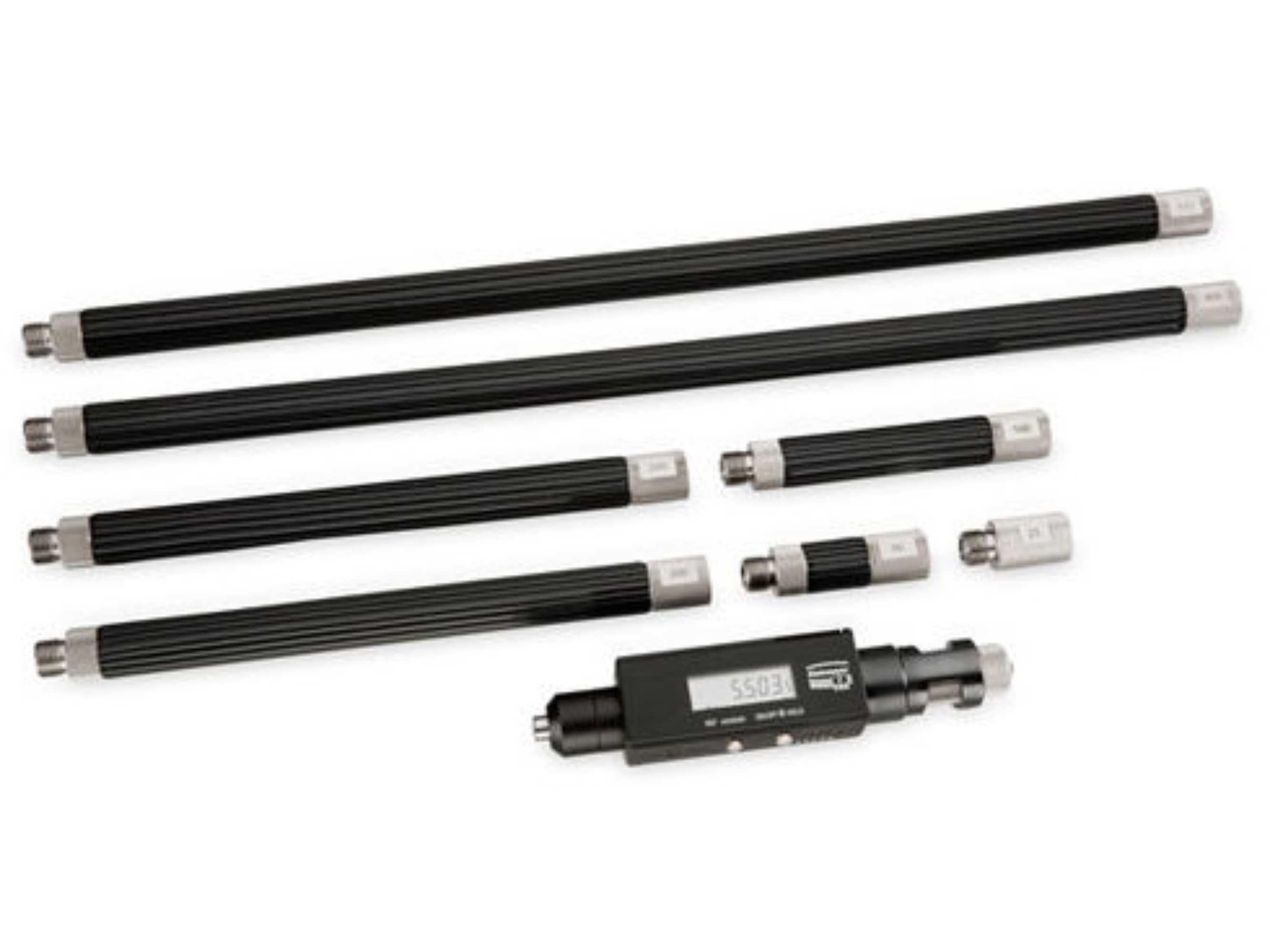

Steinmeyer Modular internal micrometer 0626 with digital display, defined measuring force and expandable measuring range of up to 5000mm.

Description

  • Measuring Head 150-175mm
  • Extension Elements 25,50,100,200,400mm

View Data Sheet

  • Error limits according to DIN 863
  • High accuracy due to non-rotating thrust shaft
  • Data interface for digital data transfer
  • Function hold measured value
  • Input and saving of PRESET-values
  • Setting of tolerance values
  • Min- / Max-value memory, zero point setting
  • SET: Metric / inch conversion (mm / inch)
  • Constant measuring force across spring

Technical Data

  • Spindle thread pitch 1,0 mm
  • Measuring faces diameter 8 mm
  • LCD display: 6 mm
  • Measuring range 25 mm / 1 inch
  • Switchable reading 0,01 mm / 0,001 mm; 0,0005 inch / 0,00005 inch
  • Measuring force across spring ~ 7 N

All images are for representation only.

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
