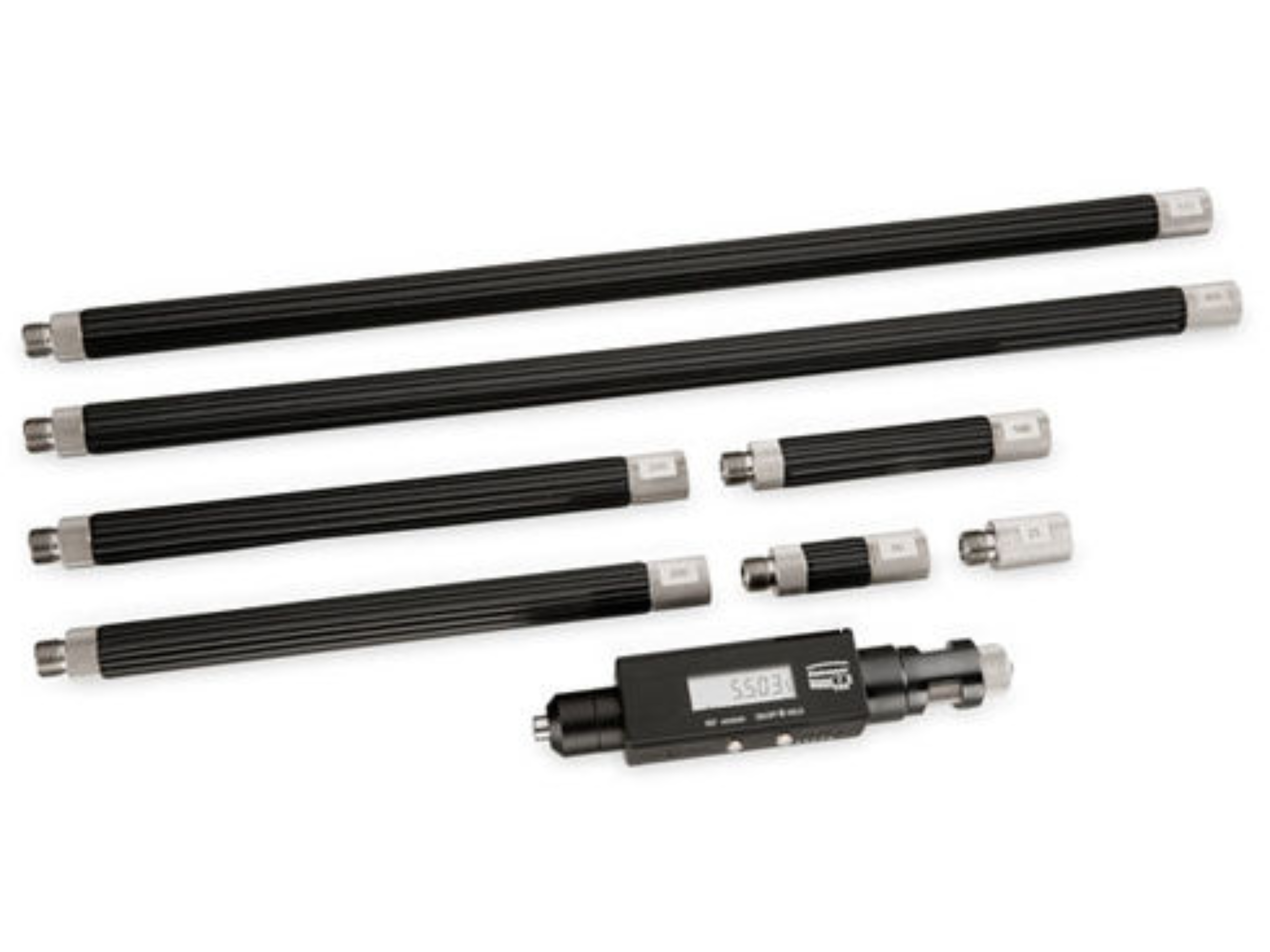

Steinmeyer Inside (Stick) Digital Micrometer Set 150-3000mm 76082600620

Steinmeyer Modular internal micrometer 0626 with digital display, defined measuring force and expandable measuring range of up to 5000mm.

Description

• Measuring Head 150-175mm
• Extension Elements 25,2x50,100,2x200,400,2x1000mm

View Data Sheet

• Error limits according to DIN 863
• High accuracy due to non-rotating thrust shaft
• Data interface for digital data transfer
• Function hold measured value
• Input and saving of PRESET-values
• Setting of tolerance values
• Min- / Max-value memory, zero point setting
• SET: Metric / inch conversion (mm / inch)
• Constant measuring force across spring

Technical Data

• Spindle thread pitch 1,0 mm
• Measuring faces diameter 8 mm
• LCD display: 6 mm
• Measuring range 25 mm / 1 inch
• Switchable reading 0,01 mm / 0,001 mm; 0,0005 inch / 0,00005 inch
• Measuring force across spring ~ 7 N

All images are for representation only.
