Mitutoyo Inside Micrometer, Interchangeable Rods 8-20", with 3 Rods, Hardened Face 141-121
Roll over image to zoom in Click on image to zoom
Mitutoyo Inside Micrometer, Interchangeable Rods 8-20", with 3 Rods, Hardened Face 141-121Mitutoyo Inside Micrometer, Interchangeable Rods 8-20", with 3 Rods, Hardened Face 141-121Mitutoyo Inside Micrometer, Interchangeable Rods 8-20", with 3 Rods, Hardened Face 141-121Mitutoyo Inside Micrometer, Interchangeable Rods 8-20", with 3 Rods, Hardened Face 141-121

Mitutoyo Inside Micrometer, Interchangeable Rods 8-20", with 3 Rods, Hardened Face 141-121

MitutoyoSKU: 141-121
Price:
€315.73 €432.50
 More payment options

SS - Product Addons

Select product(s) to see addons appear.

This message only appears in theme editor.

Description

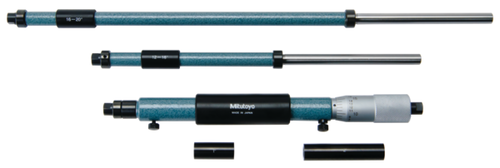

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable measuring rods. The full measuring range is achieved by combining spacing collars with the rods. The micrometer head is satin-chrome finished.

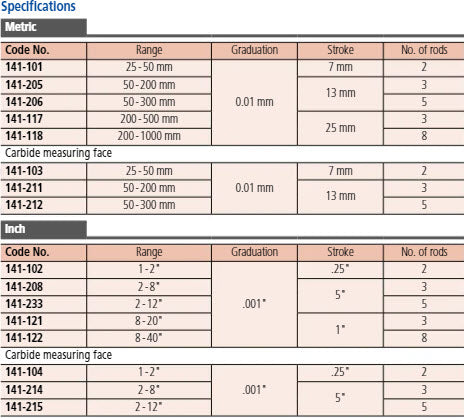

Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Range:
8 - 20 "
Graduation:
0.001"
Head adjustment range:
1" mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,635 mm with spindle lock
Measuring face:
Hardened steel
Measuring method:
2-point
Extension collar:
2 (1" / 2") mm
Interchangeable rod:
3 (4") mm
Accessories: inside micrometer (standard in the set) No.:
141-010
Delivered:
Including box, key
Delivered:
Including box, extension rods (3 pcs), extension collars (2pcs.), micrometer head 141-010
Mass:
520 g
