Mitutoyo SKU: 141-212
List price: €639.00 Offer price: €495.00 Excluding VAT

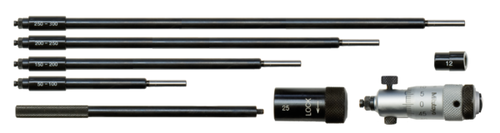

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable measuring rods. The full measuring range is achieved by combining spacing collars with the rods. The micrometer head is satin-chrome finished.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
50 - 300 mm
Measuring span:
13 mm
Graduation:
0.01 mm
Scale:
Thimble and sleeve satin chrome finish
Measuring spindle:
Spindle pitch 0,5 mm with spindle lock
Measuring face:
Carbide Measuring Faces
Measuring method:
2-point
Extension collar:
1 (12 mm) mm
Interchangeable rod:
5 (100, 150, 200, 250, 300 mm) mm

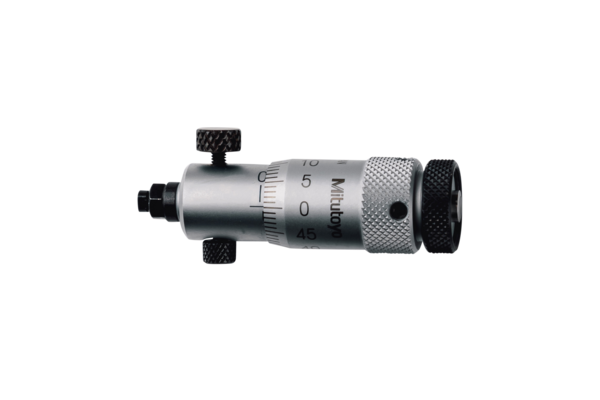

Accessories: inside micrometer (standard in the set) No.:
141-025
Delivered:
Including box, key
Delivered:
Including box, extension rods (5 pcs), extension collar, micrometer head 141-025
Mass:
275 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
