Mitutoyo Inside Micrometer, Interchangeable Rods 200-1000mm, with 8 Rods, Hardened Face 141-118

Roll over image to zoom in Click on image to zoom

Mitutoyo Inside Micrometer, Interchangeable Rods 200-1000mm, with 8 Rods, Hardened Face 141-118

Name: Mitutoyo Inside Micrometer, Interchangeable Rods 200-1000mm, with 8 Rods, Hardened Face 141-118
Brand: Mitutoyo
SKU: 141-118
Price: 481.0 EUR
Availability: InStock

MitutoyoSKU: 141-118

Price:

€481.00 €641.00

Quantity:

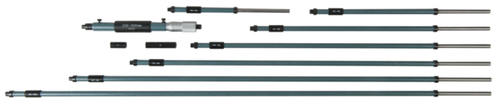

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable measuring rods. The full measuring range is achieved by combining spacing collars with the rods. The micrometer head is satin-chrome finished.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	141-118
Measuring Range	200-1000mm
Unit of Measurement	Metric
Display Type	Analogue
Items Per Set	8
Graduation on Thimble	.01mm
Micrometer Head Stroke	25mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	200 - 1,000 mm
Measuring span:	25 mm
Graduation:	0.01 mm
Scale:	Thimble and sleeve satin chrome finish
Measuring spindle:	Spindle pitch 0,5 mm with spindle lock
Measuring face:	Hardened steel
Measuring method:	2-point
Extension collar:	2 (25/50 mm) mm
Interchangeable rod:	8 (300, 400, 500, 600, 700, 800, 900, 1000 mm) mm
Accessories: inside micrometer (standard in the set) No.:	141-009
Delivered:	Including box, key
Delivered:	Including box, extension rods (8 pcs), extension collars (2 pcs.), micrometer head 141-009
Mass:	1940 g
