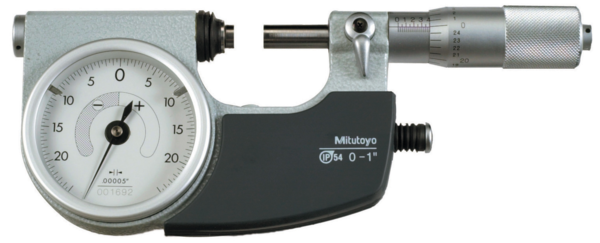

Mitutoyo Indicating Micrometer with Button Right 510-131 Range 0-1"

Roll over image to zoom in Click on image to zoom

Mitutoyo Indicating Micrometer with Button Right 510-131 Range 0-1"

Name: Mitutoyo Indicating Micrometer with Button Right 510-131 Range 0-1"
Brand: Mitutoyo
SKU: 510-131
Price: 668.0 EUR
Availability: InStock

MitutoyoSKU: 510-131

Price:

€668.00 €890.36

Quantity:

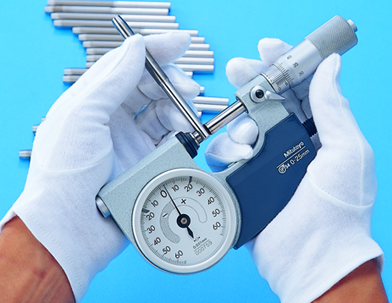

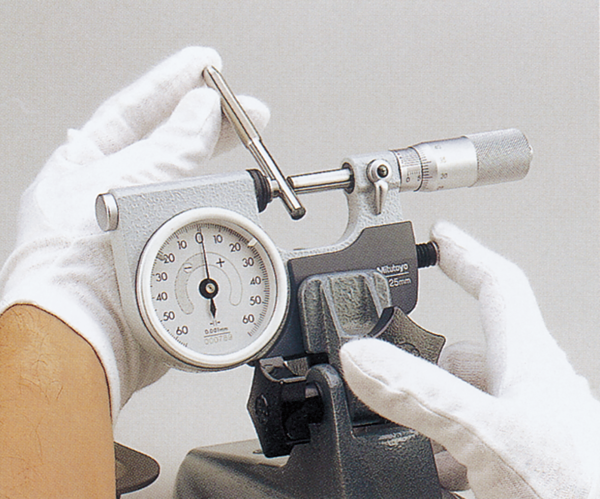

A Mitutoyo non-digital, rapid-retraction-anvil indicating micrometer equipped with a high resolution dial indicator.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	510-131
Measuring Range	0-1"
Accuracy	["±.0001\""]
Graduation	.00005"
Accuracy	+/-.0001"
Unit of Measurement	Inch
IP Rating	["IP54"]
Measuring Force	5-10N
Type	Indicating
Graduation on Thimble	.0001"
Repeatability	.00002"
Flatness	.000012"
Parallelism	.000024"

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range:	0 - 1 "
Indicating range:	±0.002"
Anvil retracting stroke:	2 mm
Spindle feed error:	0.00015 inch
Accuracy dial comparator:	1 μm
Repeatability:	0.00002"
Flatness:	0,3 μm
Parallelism:	0,000024"
Graduation:	0,0001"
Measuring face:	Carbide-tipped, micro-lap finish, ø8 mm
Measuring spindle:	With spindle lock, ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	5 - 10 N
Operating button:	Right
Delivered:	Including box, key
Mass:	520 g
