Mitutoyo SKU: 510-124
List price: €1,318.00 Offer price: €1,021.00 Excluding VAT

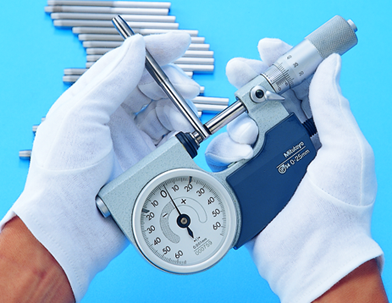

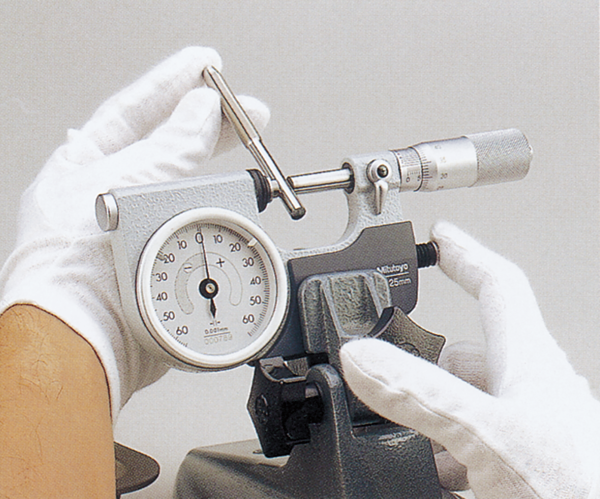

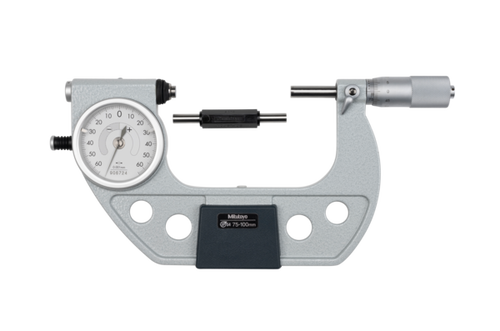

A Mitutoyo non-digital, rapid-retraction-anvil indicating micrometer equipped with a high resolution dial indicator.
Specification
Digital/Analog:
Analog
Delivered:

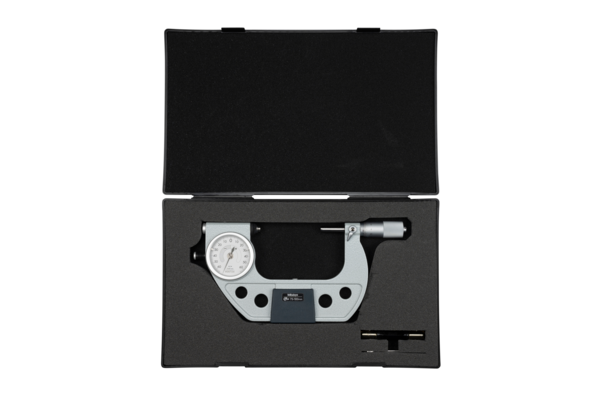

Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
75 - 100 mm
Indicating range:
±0.06 mm
Anvil retracting stroke:
2 mm
Spindle feed error:
3 µm
Accuracy dial comparator:
1 μm
Repeatability:
0.4 µm
Flatness:
0,3 μm
Parallelism:
1 μm
Graduation:
0,001 mm
Measuring face:
Carbide-tipped, micro-lap finish, ø8 mm
Measuring spindle:
With spindle lock, ø8 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:
5 - 10 N

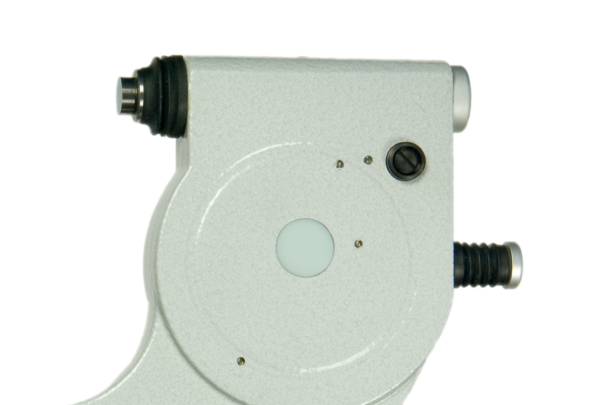

Operating button:
Left
Delivered:
Including box, key
Mass:
970 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
