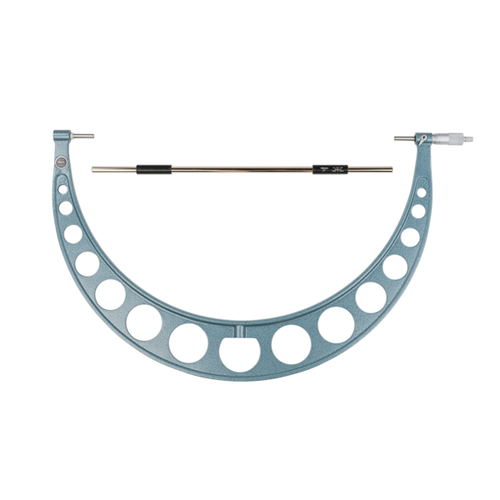

Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198
Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198
Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198
Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198
Roll over image to zoom in Click on image to zoom
Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198

Mitutoyo Imperial Analogue Outside Micrometer 21-22", Ratchet Stop 103-198

Mitutoyo SKU: 103-198
List price: €713.00 Offer price: €553.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Metric Analogue Outside Micrometer 400-425mm, Ratchet Stop 103-153
Part number: 103-153  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product

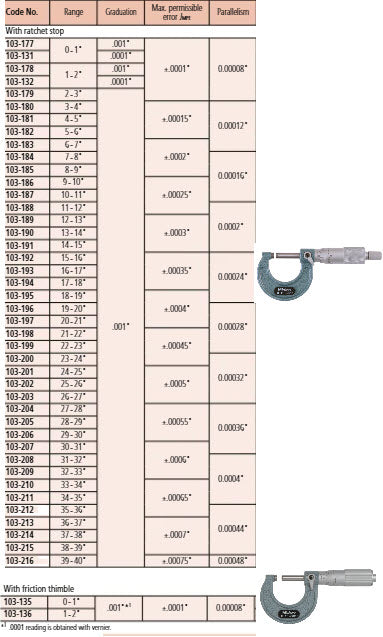

Imperial Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

    Specifications

    • Digital/Analog: Analog
    • Inch-Metric: Inch
    • Graduation: 0,001"
    • Maximum Permissible Error J MPE: ±0.001"
    • Flatness: 0.000024"
    • Parallelism: 0.00008"
    • Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
    • Scale: Thimble and sleeve satin chrome finish, ø18 mm
    • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
    • Delivered: Including box, setting standard (from 1" upward), key, certificate of inspection (0-2" range)
    • Mass: 175 g

      All images are for representation only.

      No technical information is currently available.

      No application information is currently available.
