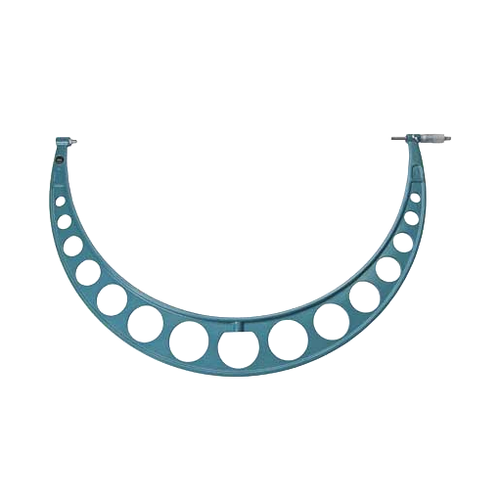

Mitutoyo Imperial Analogue Outside Micrometer 15-16", Ratchet Stop 103-192
Roll over image to zoom in Click on image to zoom
Mitutoyo Imperial Analogue Outside Micrometer 15-16", Ratchet Stop 103-192Mitutoyo Imperial Analogue Outside Micrometer 15-16", Ratchet Stop 103-192Mitutoyo Imperial Analogue Outside Micrometer 15-16", Ratchet Stop 103-192Mitutoyo Imperial Analogue Outside Micrometer 15-16", Ratchet Stop 103-192Mitutoyo Imperial Analogue Outside Micrometer 15-16", Ratchet Stop 103-192

Mitutoyo Imperial Analogue Outside Micrometer 15-16", Ratchet Stop 103-192

MitutoyoSKU: 103-192
Price:
€336.71 €461.25
 More payment options

SS - Product Addons

Select product(s) to see addons appear.

This message only appears in theme editor.

Description

Imperial Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement.

    Specifications

    • Digital/Analog: Analog
    • Inch-Metric: Inch
    • Graduation: 0,001"
    • Maximum Permissible Error J MPE: ±0.001"
    • Flatness: 0.000024"
    • Parallelism: 0.00008"
    • Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
    • Scale: Thimble and sleeve satin chrome finish, ø18 mm
    • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
    • Delivered: Including box, setting standard (from 1" upward), key, certificate of inspection (0-2" range)
    • Mass: 175 g

      All images are for representation only.
