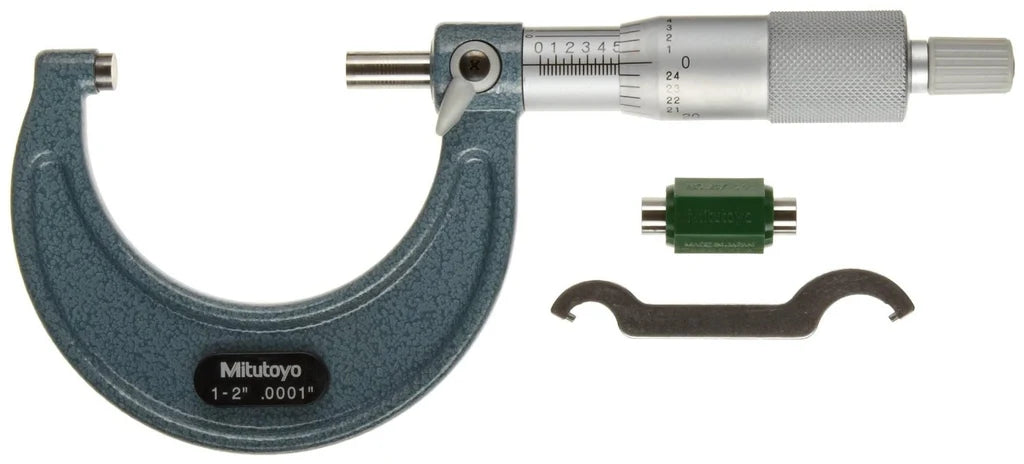

Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"
Roll over image to zoom in Click on image to zoom
Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"

Mitutoyo Metric Analogue Outside Micrometer 1-2", Ratchet Stop 103-132 Graduation .0001"

Mitutoyo SKU: 103-132
List price: €104.00 Offer price: €80.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Metric Analogue Outside Micrometer - Ratchet Stop

Series 103

A Mitutoyo basic, cost effective, non-digital micrometer with a ratchet stop to guarantee repeatable measurement. High resolution provided by a vernier scale on sleeve.

      All images are for representation only.

      Specifications

      • Digital/Analog: Analog
      • Inch-Metric: Metric
      • Graduation: 0,001 mm
      • Maximum Permissible Error J MPE: ±2 µm
      • Accuracy: ±2 µm
      • Flatness: 0,6 µm
      • Parallelism: 2 µm
      • Measuring spindle: With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm
      • Scale: Thimble and sleeve satin chrome finish, ø18 mm
      • Measuring force: 5-10 N (from 100 mm upward : 5-15 N)
      • Delivered: Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range)
      • Mass: 175 g

      Application information will be added shortly.
