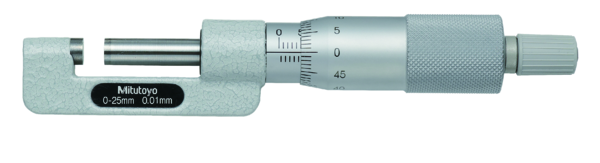

Mitutoyo Hub Micrometer 0-25mm 147-301

Name: Mitutoyo Hub Micrometer 0-25mm 147-301
Brand: Mitutoyo
SKU: 147-301
Price: 186.0 EUR
Availability: InStock

MitutoyoSKU: 147-301

Price:

€186.00 €248.00

Quantity:

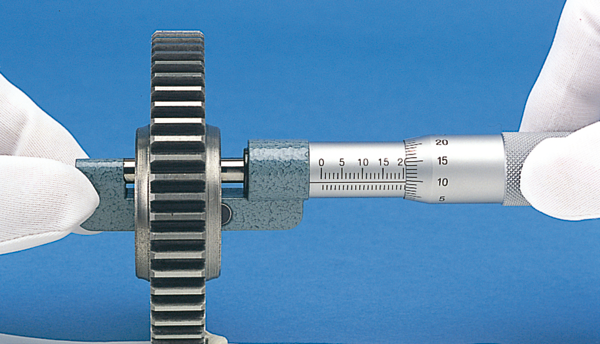

A Mitutoyo non-digital micrometer for measuring hub thickness and shoulder width inside a hole. A ratchet stop guarantees repeatable measurement.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±2 µm
Flatness:	0,6 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	135 g
