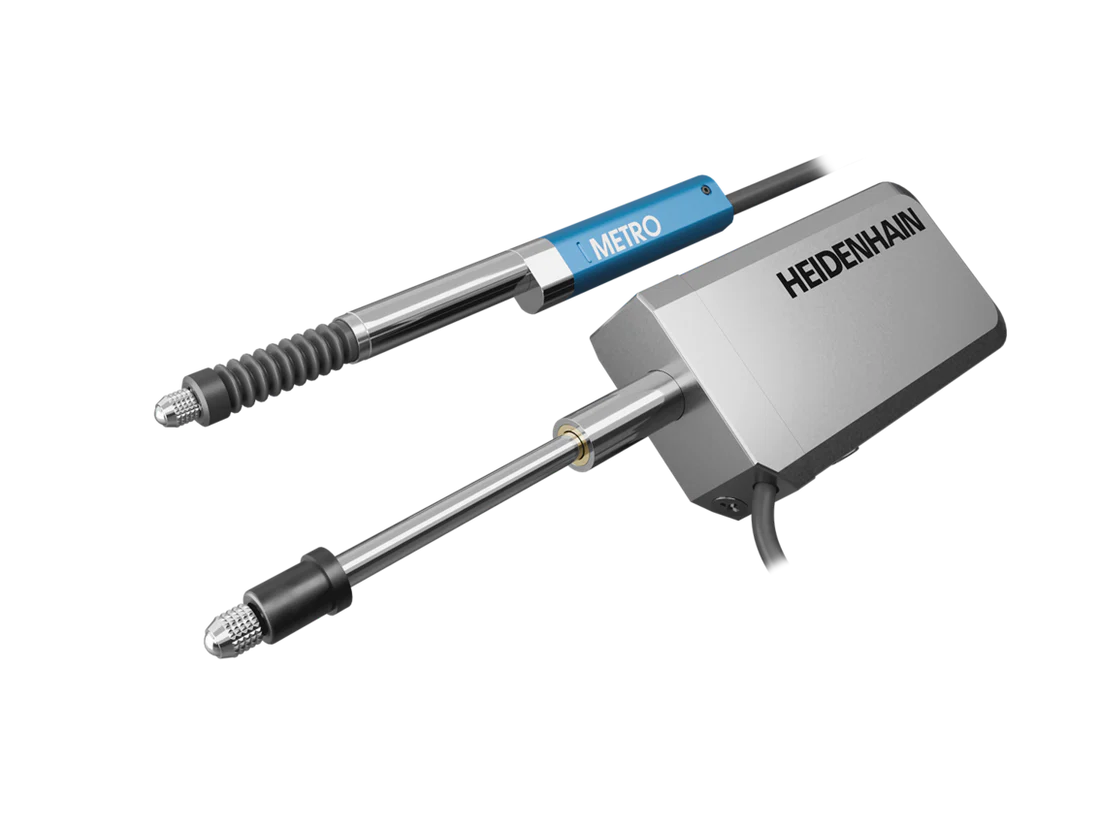

Heidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µm
Heidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µm
Heidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µm
Roll over image to zoom in Click on image to zoom
Heidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µmHeidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µmHeidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µm

Heidenhain METRO 2581 ID 363409-02 Measuring length: 25 mm Accuracy grade: 0.2 µm

Heidenhain SKU: 363409-02
Price: €1,599.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Long measuring ranges

The METRO series length gauges offer high accuracy over long measuring ranges: with the MT 101 length gauges, measuring ranges of up to 100 mm are attainable at a system accuracy of ±1 µm.

High repeatability

The optimal material mix, optomechanics, and ball-bearing-guided, zero-backlash plunger ensure very high repeatability. The result: very high measured value quality through very low measuring dispersion.

Low gauging forces

For particularly delicate workpieces, special variants with very low gauging forces of down to 0.01 N are available. Motorized length gauges, such as the MT 60M or the MT 101M, additionally ensure constant gauging forces over the entire measuring range.

Versatile plunger actuation

  • Motorized, via an integrated motor and pushbutton controller

  • MT 2581 Incremental length gauge HEIDENHAIN-METRO

    Plunger actuation:      extended by spring force

    Measuring length:       25 mm

    Type of guide:          ball-bush guide

    Reference mark position:1.7 mm

    Accuracy grade:         0.2 µm

    Electrical connection:  D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

    Pin configuration:      D330978

    Cable type:             PUR Ø 4.5 mm

    Cable length:           1.50 m

    Output signal:          sinusoidal voltage signals  (1 Vpp)

    Grating period:         4.000 µm

    Power supply:           5V+-5%

    Protection rating:      IP50 (EN60529)

    Operating temperature:  +10/+40 °C





Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
