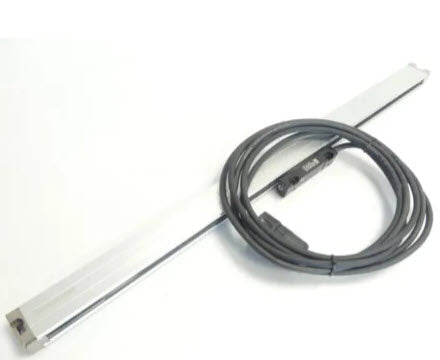

The HEIDENHAIN LS 303 / LS 303C incremental linear scales are used for simple, but accurate positioning tasks on machine tools and measurement applications and offers the following features...
- DIDUAR glass graduation (20µm grating)
- ±10µm accuracy grades
- 11µApp incremental signals
- 20µm signal period
- Measuring lengths from 70mm to 2040mm
- Distance Coded reference marks (every 50mm) or single center reference mark
- Max. cable length is 50 meters
- IP 53 rating
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
