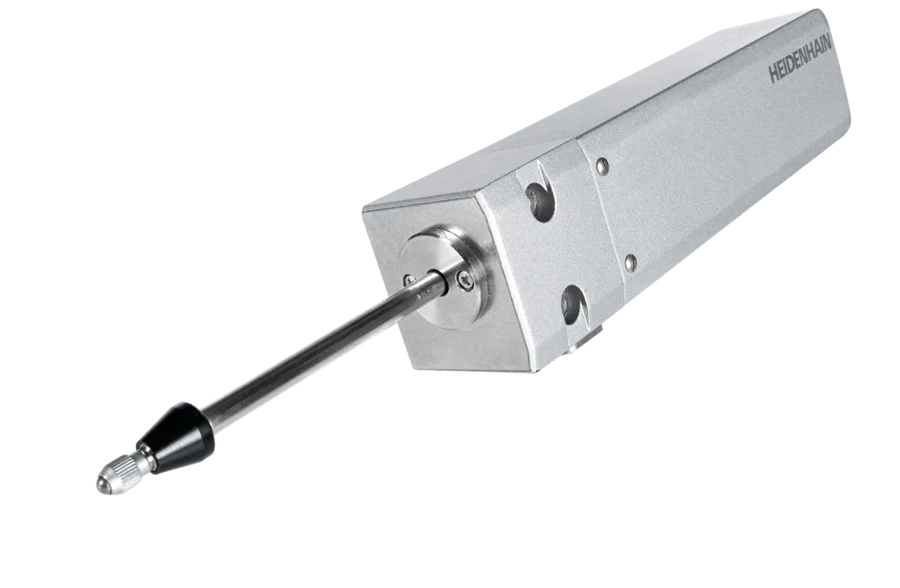

Heidenhain ID 653229-01, CT 6001 Incremental length gauge HEIDENHAIN-CERTO
Heidenhain ID 653229-01, CT 6001 Incremental length gauge HEIDENHAIN-CERTO
Roll over image to zoom in Click on image to zoom
Heidenhain ID 653229-01, CT 6001 Incremental length gauge HEIDENHAIN-CERTOHeidenhain ID 653229-01, CT 6001 Incremental length gauge HEIDENHAIN-CERTO

Heidenhain ID 653229-01, CT 6001 Incremental length gauge HEIDENHAIN-CERTO

Heidenhain SKU: 653229-01
Price: €6,200.00 Excluding VAT


The CERTO series harnesses special materials with low thermal coefficients of expansion: the scale is made of Zerodur, while the plunger and holder are made of Invar. This ensures high measuring accuracy over a wide temperature range.

High accuracy

Thanks to intereferential scanning and linear-error compensation in the evaluation electronics, system accuracies of down to ±0.03 µm are possible. These length gauges are well suited to highly demanding measuring tasks, such as the inspection of individual high-precision parts or the calibration of reference standards.

High-precision ball-bearing guide

The ball-bearing guide is specially matched to meet the high accuracy demands placed on the CERTO length gauges. The bearing and plunger are fitted so as to eliminate play during guidance, thus ensuring exceptional measurement accuracy.

Consistent gauging forces

The gauging forces of the motorized CT 2501 and CT 6001 length gauges can be adjusted in three levels on the controller and remain constant across the entire measuring range.



CT 6001 Incremental length gauge HEIDENHAIN-CERTO

Plunger actuation:      With motor

Measuring length:       60.00 mm

Reference mark position:1.7 mm

Accuracy grade:         0.1 µm

Electrical connection:  D-sub connector, 2-row, with locking screws, with integrated electronics, coated, male, 15-pin

Pin configuration:      D330979

Cable type:             PUR Ø 4.5 mm

Cable length:           1.50 m

Length additional cable: 1.50 m

Output signal:          sinusoidal current signals  (11 µApp)

Signal period:          2.000 µm

Power supply:           5V+-5%

Protection rating:      IP50 (EN60529)

Operating temperature:  +10/+40 °C

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
