Manufactured in Switzerland
High sensitivity repeatability and accuracy. All Girod-Tast indicators meet or exceed Federal or DIN specifications or other national standards. All Girod-Tast indicators have proven reliability durability and modern design features. Unaffected by magnetic fields. Automatic reversing contact point with constant clockwise rotation. Easy and error-free reading by only one revolution of the hand. Adjustable bezel and dial. Fully jeweled completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance. Rugged one-piece housing provided with 3 dovetails : top back and front ; corrosion resistant with satin chrome finish. Contact point swivel supported in precision ball bearings. Designed for universal applications. Well-suited for workshop use. Interchangeable carbide contact point swivels over 240

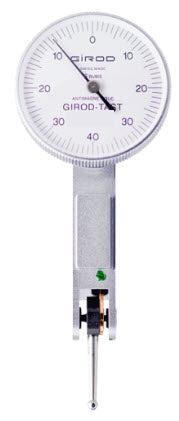

Girod Horizontal Indicator GT1252A, Graduation: .0005", Range: .030"
| Style of Indicator |
Lever Horizontal Test Indicators Inch Basic Set |
| Face Diameter |
1.1" |
| Measurement units |
Inch |
| Indicator Range |
.03" |
| Measuring Range |
.03" |
| Graduation |
.0005" |
| Stylus Length |
.57" |
| Scale for Indicator |
0-15-0 |
| Accuracy |
.0005" |
| Digital, Non-Digital |
Non Digital |
| Measuring Force |
.15N |
