Mitutoyo Groove Micrometer, Non-Rotating Spindle 50-75mm, 12.7mm Flange 146-224

Roll over image to zoom in Click on image to zoom

Mitutoyo Groove Micrometer, Non-Rotating Spindle 50-75mm, 12.7mm Flange 146-224

Name: Mitutoyo Groove Micrometer, Non-Rotating Spindle 50-75mm, 12.7mm Flange 146-224
Brand: Mitutoyo
SKU: 146-224
Price: 491.0 EUR
Availability: InStock

MitutoyoSKU: 146-224

Price:

€491.00 €654.00

Quantity:

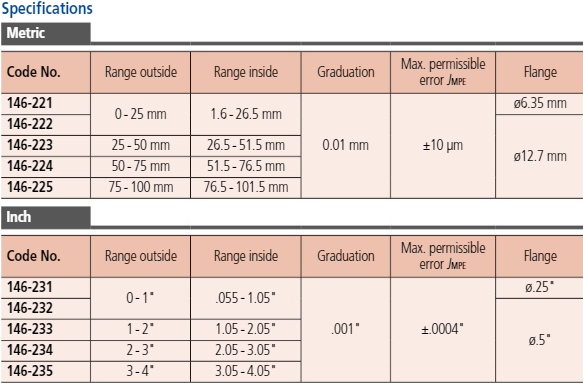

Specification

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range Outside:	50-75 mm
Range Inside:	51.5-76.5 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±10 µm
Parallelism:	10 µm
Measuring face:	Hardened
Measuring spindle:	Spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, key
Mass:	165 g

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	146-224
Measuring Range	50-75mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Groove
Maximum Permissible Error	±10µm
Calibration Code	CAL9 B3
