Mitutoyo Groove Micrometer, Non-Rotating Spindle 3-4", 0.5" Flange 146-235

Roll over image to zoom in Click on image to zoom

Mitutoyo Groove Micrometer, Non-Rotating Spindle 3-4", 0.5" Flange 146-235

Name: Mitutoyo Groove Micrometer, Non-Rotating Spindle 3-4", 0.5" Flange 146-235
Brand: Mitutoyo
SKU: 146-235
Price: 504.0 EUR
Availability: InStock

MitutoyoSKU: 146-235

Price:

€504.00 €672.00

Quantity:

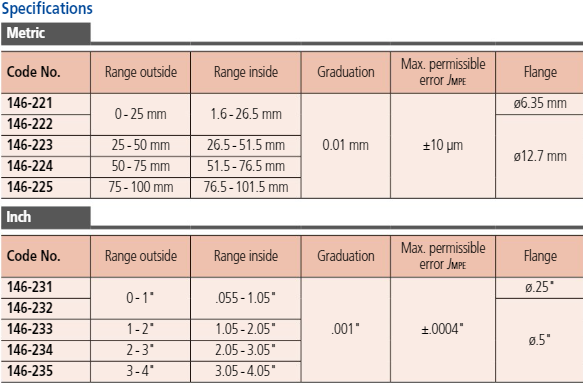

Specification

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range Outside:	3"-4"
Range Inside:	3.05"-4.05"
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,0004"
Parallelism:	0,0004"
Measuring face:	Hardened
Measuring spindle:	Spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, key
Mass:	160 g

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	146-235
Measuring Range	3-4"
Graduation	.001"
Unit of Measurement	Inch
Display Type	Analogue
Measuring Force	5-10N
Type	Groove
Maximum Permissible Error	±.0004"
Calibration Code	CAL9 B3

Mitutoyo Groove Micrometer, Non-Rotating Spindle 3-4", 0.5" Flange 146-235
