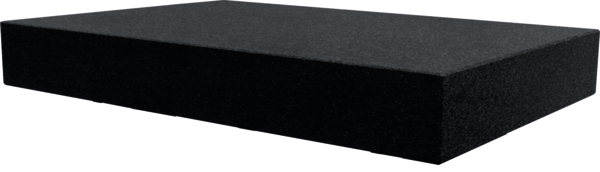

Granite Surface Plate, DIN 876 Grade 0, 400x250x50mm Item number: 901-121
Roll over image to zoom in Click on image to zoom
Granite Surface Plate, DIN 876 Grade 0, 400x250x50mm Item number: 901-121

Granite Surface Plate, DIN 876 Grade 0, 400x250x50mm Item number: 901-121

Mitutoyo SKU: 901-135
Price: €1,614.46 Excluding VAT

Granite Surface Plate, DIN 876

Grade 0, 400x250x50mm

Item number: 901-121



  • Surface diamond lapped, side face fine ground, backside fine sawn.
  • The optional stand is a welded construction including 3 or 5-point bearings and two adjusting screws.
  • Delivered with a certificate of inspection
Features
Vickers hardness:
HV 850-900
Flexural strength:

13-22 N/mm2
Compressive strength:

Approx. 280 N/mm2
Linear coefficient of expansion:

(5 - 7.5) x 10-6 x K-1
Dimensions L x W x H:
400 x 250 x 50 mm
Accuracy:
DIN 876 grade 0
Max. workpiece load:
100 kg
Delivered:
With steel ball inserts and certificate of inspection
Mass:
15 kg



Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
