Manufactured in Switzerland
High sensitivity repeatability and accuracy. All Girod-Tast indicators meet or exceed Federal or DIN specifications or other national standards. All Girod-Tast indicators have proven reliability durability and modern design features. Unaffected by magnetic fields. Automatic reversing contact point with constant clockwise rotation. Easy and error-free reading by only one revolution of the hand. Adjustable bezel and dial. Fully jeweled completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance. Rugged one-piece housing provided with 3 dovetails : top back and front ; corrosion resistant with satin chrome finish. Contact point swivel supported in precision ball bearings. Designed for universal applications. Well-suited for workshop use. Interchangeable carbide contact point swivels over 240 Deg

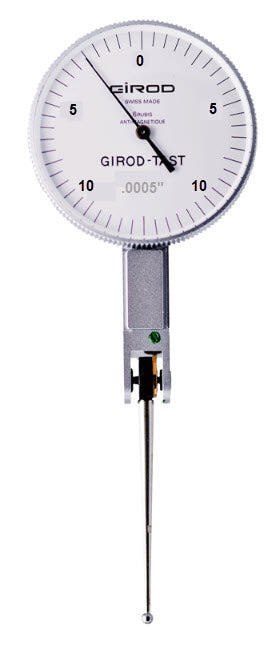

| Style of Indicator | Lever Horizontal Test Indicators Inch Long Stylus |
|---|---|
| Face Diameter | 1.5" |
| Measurement units | Inch |
| Indicator Range | .02" |
| Measuring Range | .02" |
| Graduation | .0005" |
| Dial Reading | 0-15-0 |
| Stylus Length | 1.18" |
| scale | 0-15-0 |
| Accuracy | .0005" |
| Digital, Non-Digital | Non Digital |
| Measuring Force | .15N |
