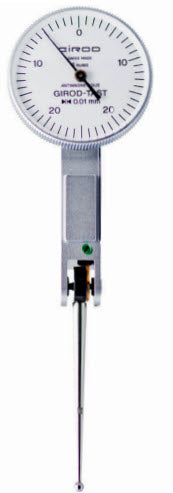

Girod Horizontal Indicator Long stylus GT 1254, Graduation: .01mm, Range: 0.5mm, Reading: 0-25-0, Face 27.4mm, Stylus 36mm, DIN 2270
Girod Horizontal Indicator Long stylus GT 1254, Graduation: .01mm, Range: 0.5mm, Reading: 0-25-0, Face 27.4mm, Stylus 36mm, DIN 2270
Roll over image to zoom in Click on image to zoom
Girod Horizontal Indicator Long stylus GT 1254, Graduation: .01mm, Range: 0.5mm, Reading: 0-25-0, Face 27.4mm, Stylus 36mm, DIN 2270Girod Horizontal Indicator Long stylus GT 1254, Graduation: .01mm, Range: 0.5mm, Reading: 0-25-0, Face 27.4mm, Stylus 36mm, DIN 2270

Girod Horizontal Indicator Long stylus GT 1254, Graduation: .01mm, Range: 0.5mm, Reading: 0-25-0, Face 27.4mm, Stylus 36mm, DIN 2270

Girod SKU: GT 1254
Price: €119.00 Excluding VAT


Manufactured in Switzerland

High sensitivity repeatability and accuracy. All Girod-Tast indicators meet or exceed Federal or DIN specifications or other national standards. All Girod-Tast indicators have proven reliability durability and modern design features. Unaffected by magnetic fields. Automatic reversing contact point with constant clockwise rotation. Easy and error-free reading by only one revolution of the hand. Adjustable bezel and dial. Fully jeweled completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance. Rugged one-piece housing provided with 3 dovetails : top back and front ; corrosion resistant with satin chrome finish. Contact point swivel supported in precision ball bearings. Designed for universal applications. Well-suited for workshop use. Interchangeable carbide contact point swivels over 240 degrees
Girod Horizontal Indicator Long stylus GT 1254, Graduation: .01mm, Range: 0.5mm
Style of Indicator Lever Horizontal Test Indicators Metric Long Stylus
Face Diameter 27.5mm
Measurement units Meric
Indicator Range .5mm
Measuring Range .5mm
Graduation .01mm
Dial Reading 0-25-0
Stylus Length 36mm
scale 0-25-0
Accuracy .01mm
Digital, Non-Digital Non Digital
Measuring Force .15N

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
