| Type |
GT-1472-R |
|---|---|
| Reading |
0.01 mm |
| Range |
0.8 mm |
| Version |
vertical |
| Dial |
37 mm |
| Probe length |
36 mm |

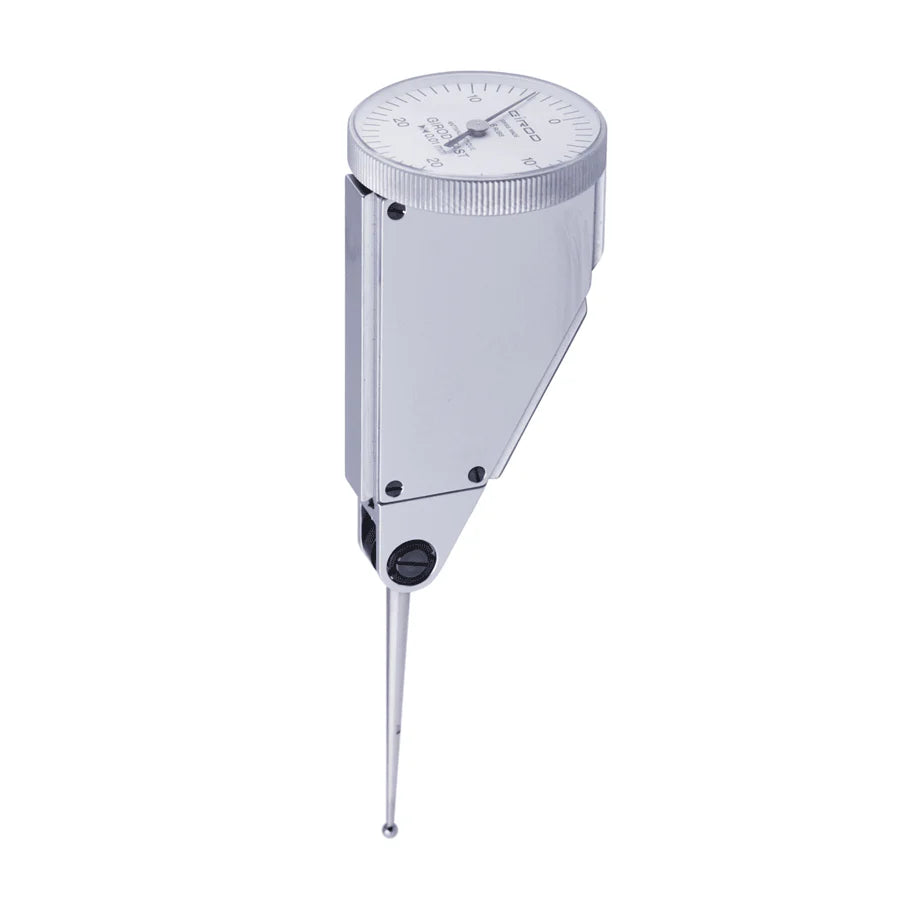

High sensitivity repeatability and accuracy. All Girod-Tast indicators meet or exceed Federal or DIN specifications or other national standards. All Girod-Tast indicators have proven reliability durability and modern design features. Unaffected by magnetic fields. Automatic reversing contact point with constant clockwise rotation. Easy and error-free reading by only one revolution of the hand. Adjustable bezel and dial. Fully jeweled completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance. Rugged one-piece housing provided with 3 dovetails : top back and front ; corrosion resistant with satin chrome finish. Contact point swivel supported in precision ball bearings. Designed for universal applications. Well-suited for workshop use. Interchangeable carbide contact point swivels over 240 degrees
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
