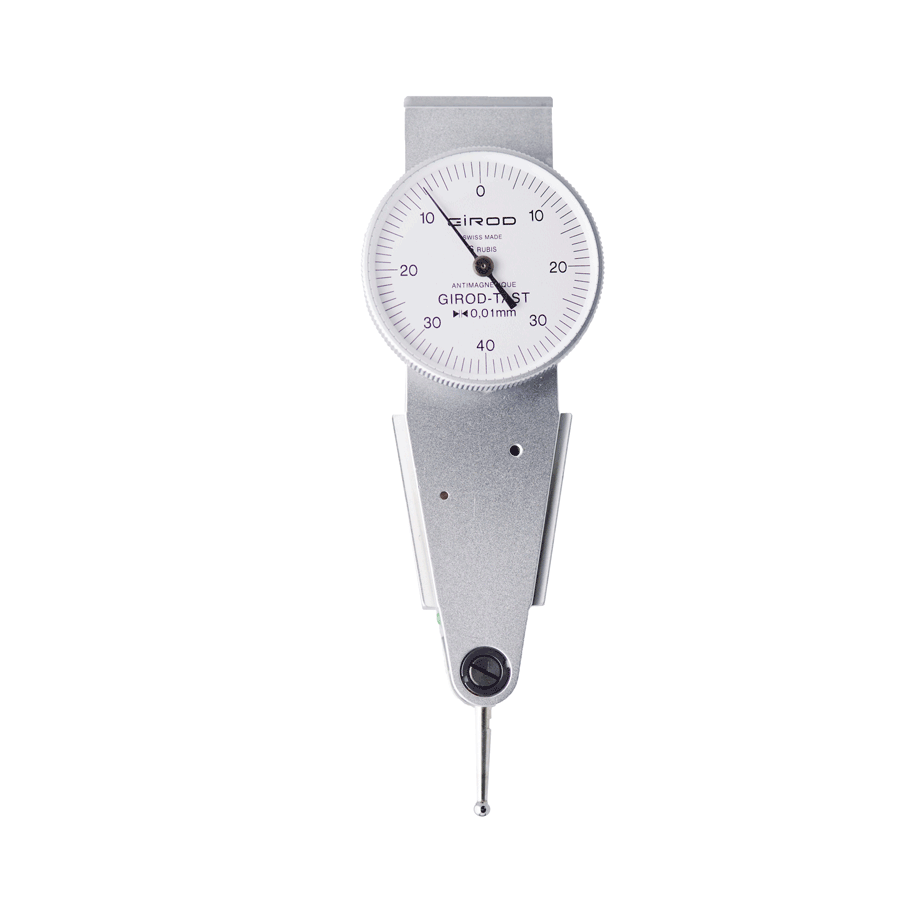

Girod GT 1292 R Lever Dial Indicator Parallel Type, Graduation 0.01mm, Range 0.8mm, Stylus Length 12mm, Bezel Diameter 27.4m, Antimagnetic, Manufactured in Switzerland (Copy)
Girod GT 1292 R Lever Dial Indicator Parallel Type, Graduation 0.01mm, Range 0.8mm, Stylus Length 12mm, Bezel Diameter 27.4m, Antimagnetic, Manufactured in Switzerland (Copy)
Roll over image to zoom in Click on image to zoom
Girod GT 1292 R Lever Dial Indicator Parallel Type, Graduation 0.01mm, Range 0.8mm, Stylus Length 12mm, Bezel Diameter 27.4m, Antimagnetic, Manufactured in Switzerland (Copy)Girod GT 1292 R Lever Dial Indicator Parallel Type, Graduation 0.01mm, Range 0.8mm, Stylus Length 12mm, Bezel Diameter 27.4m, Antimagnetic, Manufactured in Switzerland (Copy)

Girod GT 1292 R Lever Dial Indicator Parallel Type, Graduation 0.01mm, Range 0.8mm, Stylus Length 12mm, Bezel Diameter 27.4m, Antimagnetic, Manufactured in Switzerland (Copy)

Girod SKU: GT1292-R
Price: €210.00 Excluding VAT

  • Type

    GT-1292-R
    Reading

    0.01 mm
    Range

    0.8 mm
    Version

    Parallel
    Dial

    27.4 mm
    Probe length

    12mm
Manufactured in Switzerland


High sensitivity, repeatability and accuracy (according to DIN 2270 standards).
The appliances are tested, highly reliable and have a very neat appearance.
Unaffected by magnetic fields.
Automatic reversing contact point, with constant clockwise rotation.
Easy and error-free reading by only one revolution of the hand.
Adjustable bezel and dial.
Fully jewelled, completely independent and interchangeable movement. Easily and quickly removed and replaced for maintenance.
Rugged one-piece housing provided with 3 dovetails : top, back and front; corrosion resistant with satin chrome finish.
Contact point swivel supported in precision ball bearings.
Designed for universal applications. Well-suited for workshop use.
Interchangeable carbide contact point swivels over 240°.
Girod Horizontal Indicator GT1252, Graduation: .01mm , Range: 0.8mm, Reading: 0-40-0, Face 27.4mm, Stylus 12mm, DIN 2270, Each indicator is delivered in a box with 1 key-stylus and 1 dovetail Ø8mm.

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
