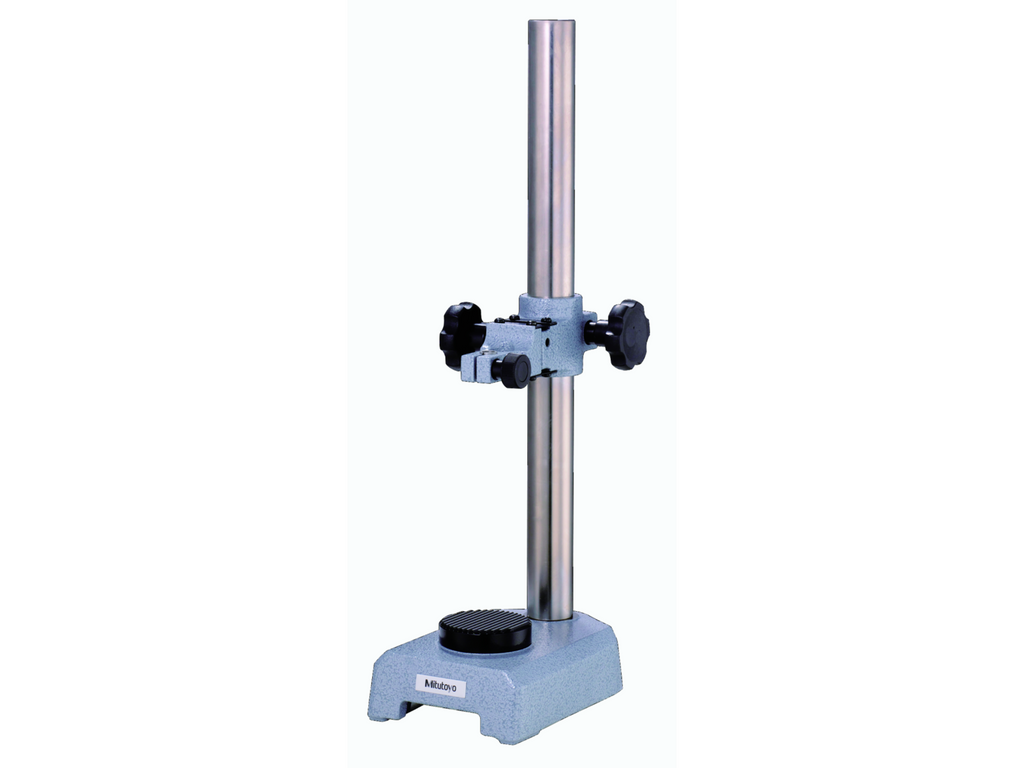

Gauge Stand with Hardened Steel Anvil, D=58mm Serrated Anvil Heigh Column 519-109-10

Roll over image to zoom in Click on image to zoom

Gauge Stand with Hardened Steel Anvil, D=58mm Serrated Anvil Heigh Column 519-109-10

Name: Gauge Stand with Hardened Steel Anvil, D=58mm Serrated Anvil Heigh Column 519-109-10
Brand: Mitutoyo
SKU: 519-109-10
Price: 678.0 EUR
Availability: InStock

MitutoyoSKU: 519-109-10

Price:

€678.00 €904.00

Quantity:

Mitutoyo Dial Gauge Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.

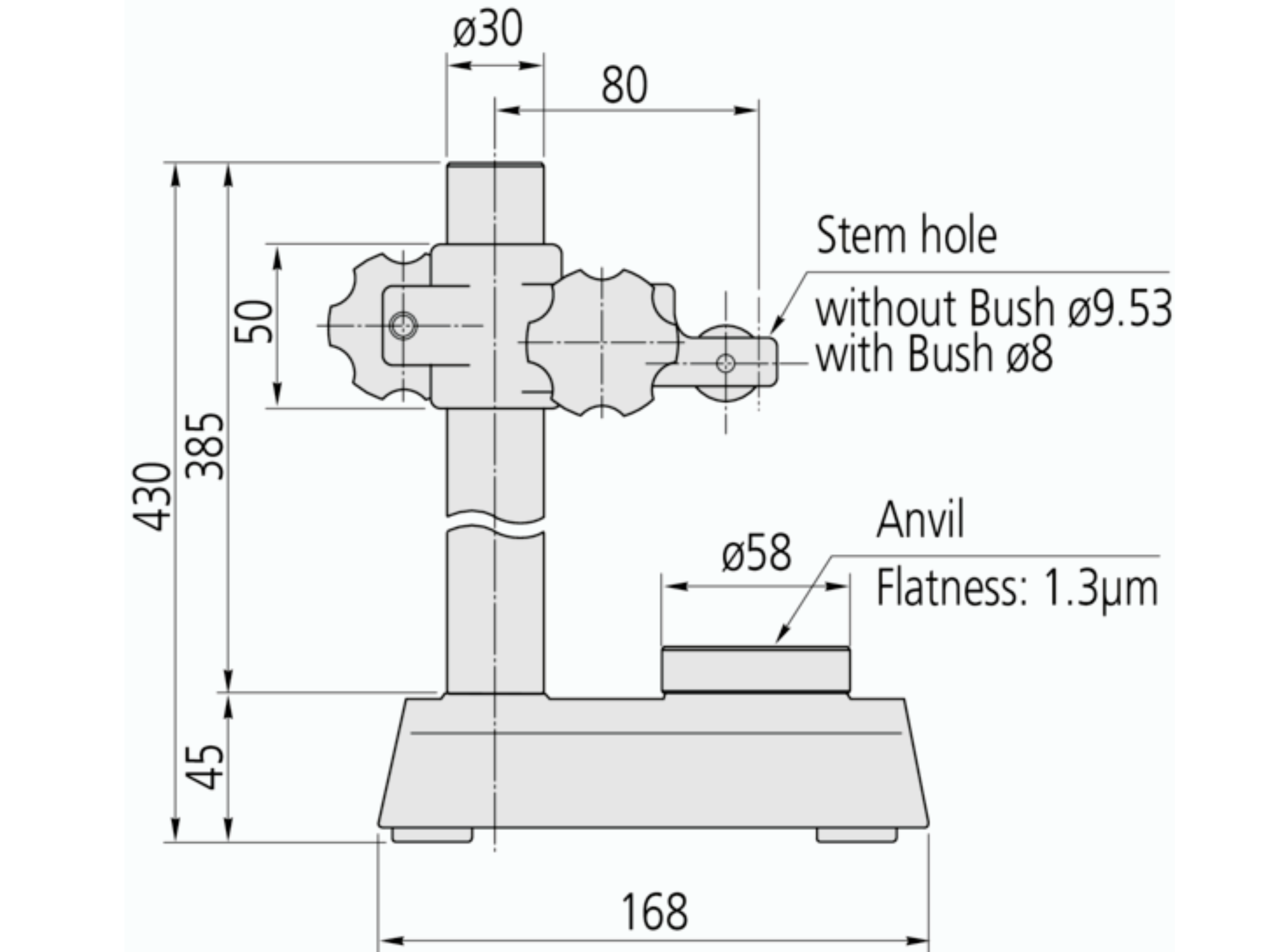

Specification

Effective table dimensions: Ø 58 mm
Column Ø: 30 mm
Base size : 168 x 110 mm
Max. measurement height: 318 mm

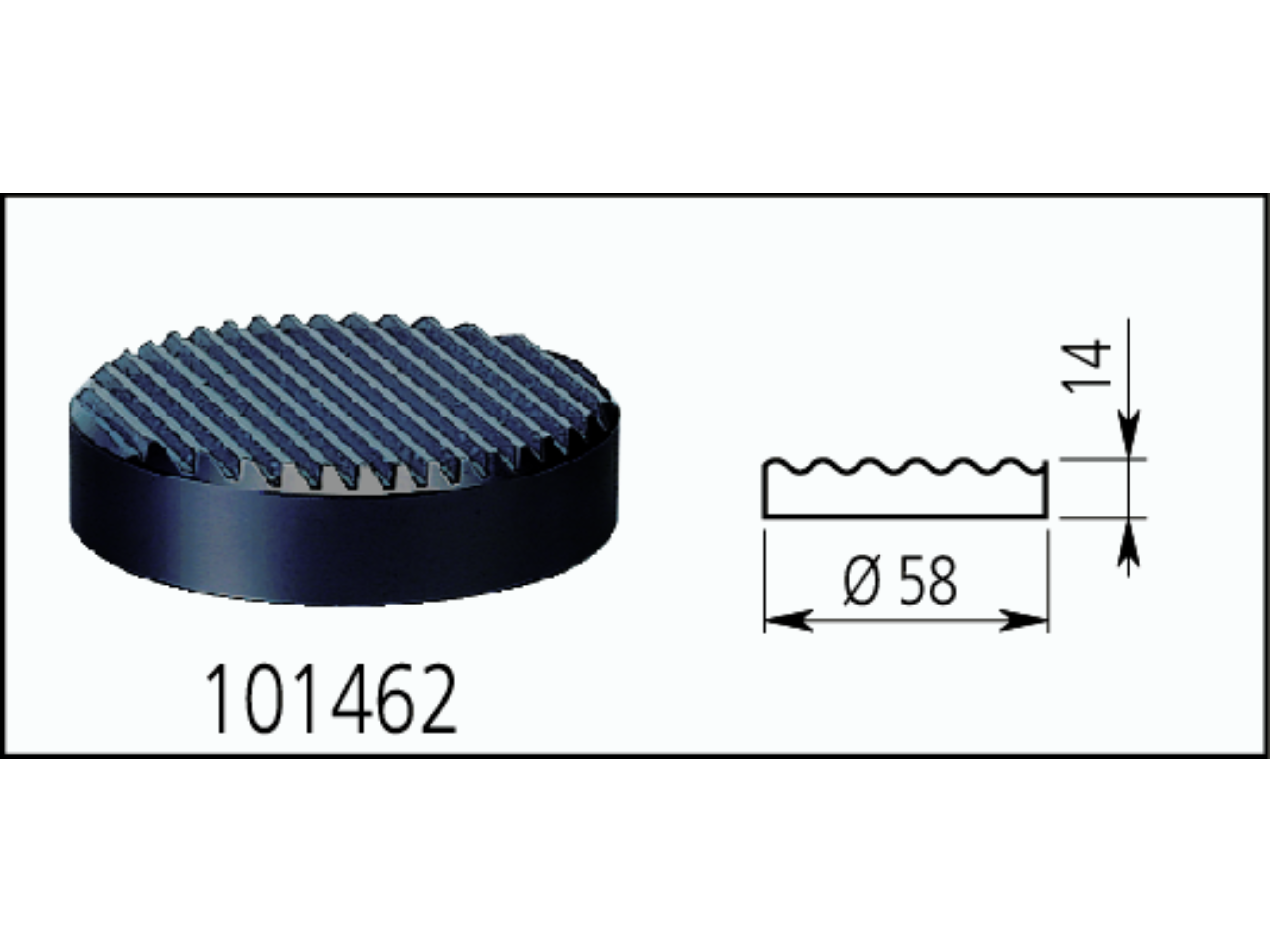

Measuring Table: Serrated (101,462)
Fine adjustment: 1 mm
Stem hole ø: ø 3/8" / 9.53 mm , 8 mm with bush (standard accessory)
Stem hole ø: ø 9,53 mm (ø 8 mm with bush)
Perpendicularity table-stem hole: 0,4/100 mm
Table flatness: 1,3 µm
Mass: 6 kg

All images are for representation only.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	519-109-10
Height	480mm
Stem hole ø	9.53 mm, 8 mm with bush (standard accessory)
Fine Adjustment	1mm
