Mitutoyo SKU: 516-106-60
List price: €793.00 Offer price: €615.00 Excluding VAT

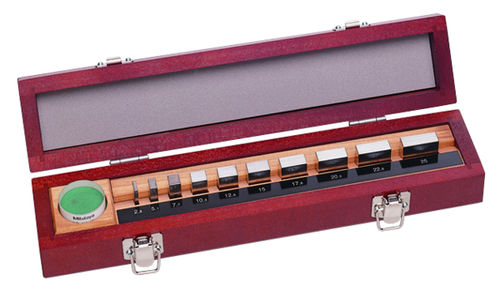

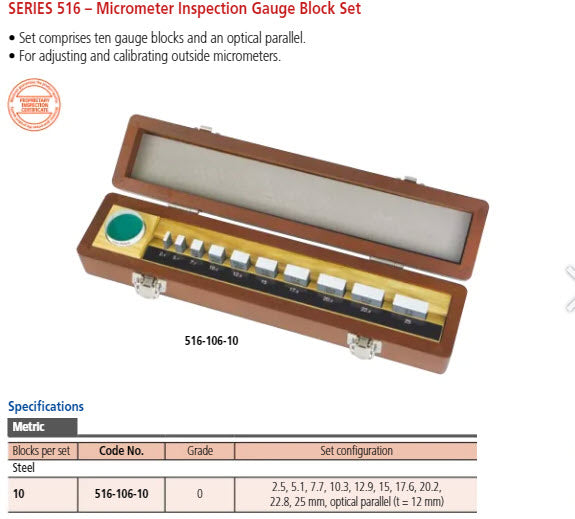

A Mitutoyo outside micrometer test set comprising ten gauge blocks for testing accuracy throughout measuring stroke and an optical parallel for testing contact face flatness and parallelism.
Specification
Inch-Metric:
Metric
Type of Certificate:
Inspection certificate
Delivered:
In a wooden case with certificate of inspection (Gauge Blocks only)
Accuracy:

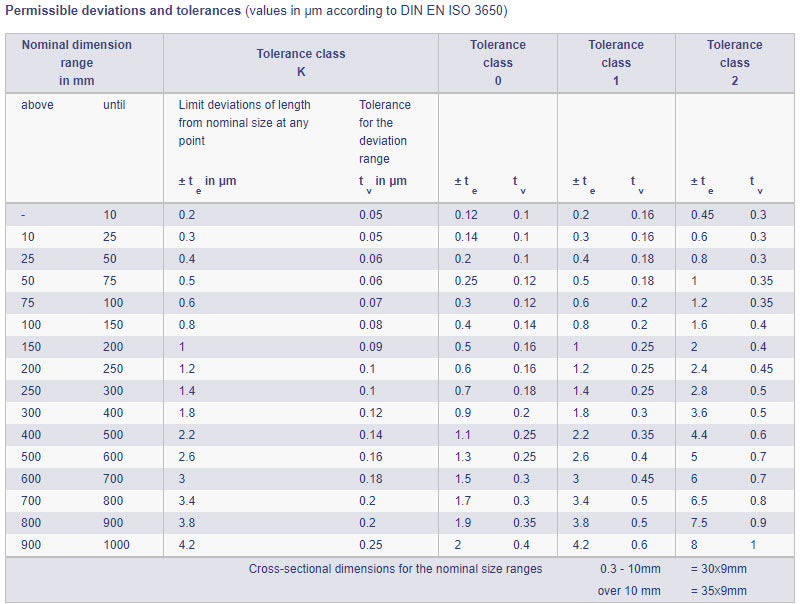

EN ISO 3650
Grade:
0
Material:
Steel
Calibration/Standard applications:
EN ISO 3611
DIN 863 (1999)
VDI/VDE/DGQ 2618
Set configuration:
2,5, 5,1, 7,7, 10,3, 12,9, 15, 17,6, 20,2, 22,8, 25 mm, Optical parallel (t = 12 mm)
Delivered:
In a wooden case with certificate (Gauge Blocks only)
Mass:
1000 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
