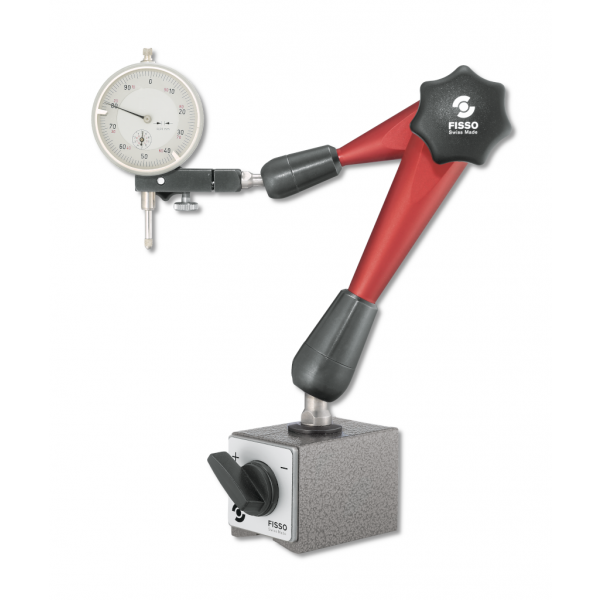

FISSO Strato Line M-28.15 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8" to 8mm bushing. Indicator Not supplied
FISSO Strato Line M-28.15 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8" to 8mm bushing. Indicator Not supplied
Roll over image to zoom in Click on image to zoom
FISSO Strato Line M-28.15 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8" to 8mm bushing. Indicator Not suppliedFISSO Strato Line M-28.15 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8" to 8mm bushing. Indicator Not supplied

FISSO Strato Line M-28.15 Model: M-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8" to 8mm bushing. Indicator Not supplied

Baitella AG, Fisso SKU: 1.640
Price: €250.00 Excluding VAT
Articulated measuring stands Strato Line M-28 F + M magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Aluminum linkage
Magnetic V base
Switchable magnet
Dial mounting hole Ø
3/8" Stem with 3/8" to 8mm bushing

Delivered in individual packages, without dial gauge
Applications:

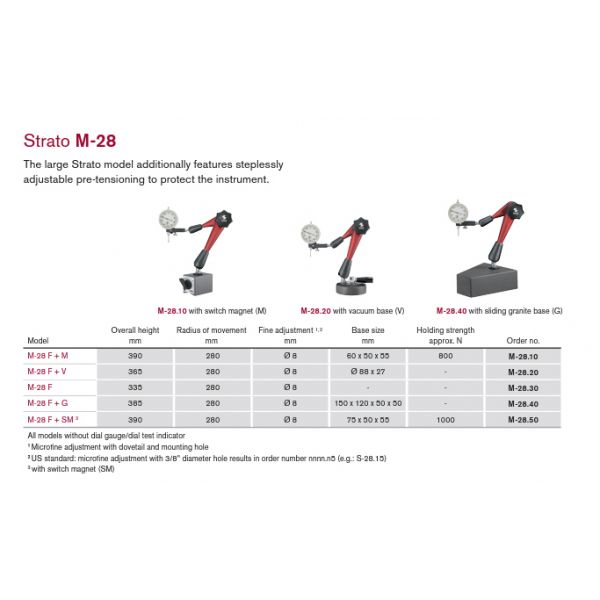

The large Strato model additionally features adjustable pre-tensioning to protect the instrument.
Size: 280/390mm
Brand: FISSO
Manufacturer number: M-28.10
Base: switch magnet
Base dimension: 60x50x55mm
op. range/height: 280/390mm
Height: 390mm
Fine adjustment: Ø 8mm
Adhesive force: 800N
Weight: 1.85kg
FISSO Strato Line Model: M-28 F + M - 3D articulated gauging arm with on-off magnet,
3/8" Stem with 3/8" to 8mm bushing
Indicator Not supplied
