Fisso Strato line 3D articulated gauging arm XS13.55 (XS-13 F + S2) With Switch Magnet, 3/8" Stem. Indicator Not Included
Fisso Strato line 3D articulated gauging arm XS13.55 (XS-13 F + S2) With Switch Magnet, 3/8" Stem. Indicator Not Included
Fisso Strato line 3D articulated gauging arm XS13.55 (XS-13 F + S2) With Switch Magnet, 3/8" Stem. Indicator Not Included
Roll over image to zoom in Click on image to zoom
Fisso Strato line 3D articulated gauging arm XS13.55 (XS-13 F + S2) With Switch Magnet, 3/8" Stem. Indicator Not IncludedFisso Strato line 3D articulated gauging arm XS13.55 (XS-13 F + S2) With Switch Magnet, 3/8" Stem. Indicator Not IncludedFisso Strato line 3D articulated gauging arm XS13.55 (XS-13 F + S2) With Switch Magnet, 3/8" Stem. Indicator Not Included

Fisso Strato line 3D articulated gauging arm XS13.55 (XS-13 F + S2) With Switch Magnet, 3/8" Stem. Indicator Not Included

Baitella AG, Fisso SKU: XS13.55
Price: €231.00 Excluding VAT

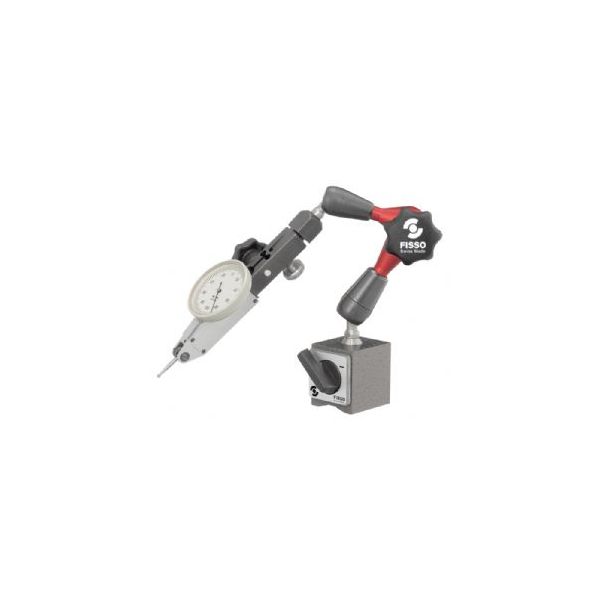

Articulated measuring stands Strato Line XS-13 F + S2 magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Aluminum linkage
Magnetic V base
Switchable magnet
Dial mounting hole Ø3/8"
Delivered in individual packages, without dial gauge
Applications:

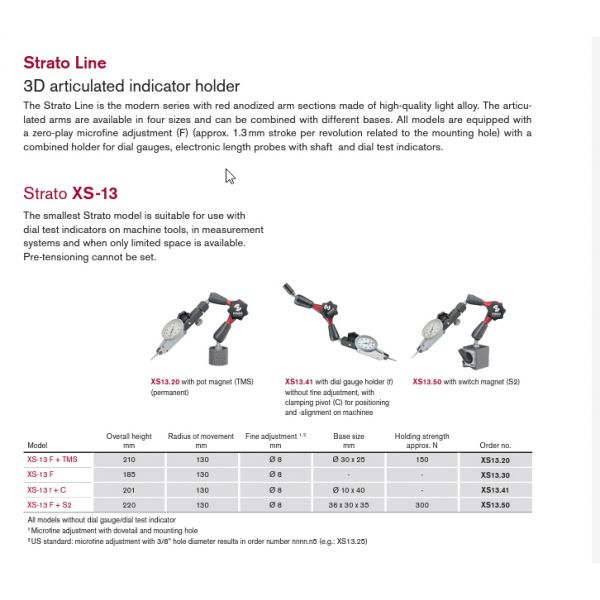

The smallest Strato model is suitable for use with dial test indicators on machine tools, in measurement systems, and when only limited space is available. Pre-tensioning cannot be set.
Articulated measuring stands Strato Line XS-13 F + S2 magnetic, mechanical center lock and micro-fine adjustment
Size: 130/220mm
Brand: FISSO
Manufacturer number: XS13.50
Base: switch magnet
Base dimension: 34x30x35mm
op. range/height: 130/220mm
Height: 220mm
Fine adjustment: Ø 8mm
Adhesive force: 300N
Weight: 0.45kg
Fisso Strato line 3D articulated gauging arm XS13.50 (XS-13 F + S2) With Switch Magnet, 8mm Stem

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
