FISSO 3328.15 Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8"-8mm bushing. Indicator Not supplied
FISSO 3328.15 Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8"-8mm bushing. Indicator Not supplied
Roll over image to zoom in Click on image to zoom
FISSO 3328.15 Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8"-8mm bushing. Indicator Not suppliedFISSO 3328.15 Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8"-8mm bushing. Indicator Not supplied

FISSO 3328.15 Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem with 3/8"-8mm bushing. Indicator Not supplied

Baitella AG, Fisso SKU: 3328.15
List price: €290.00 Offer price: €247.00 Excluding VAT

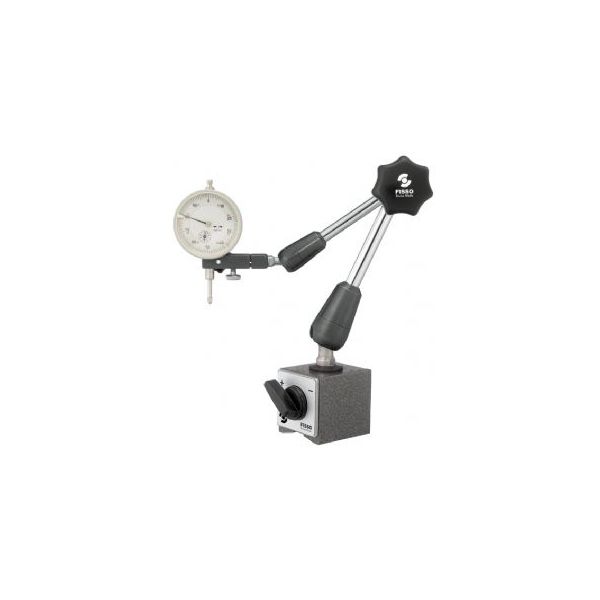

Articulated measuring stands Classic Line 3300-28 F + M magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Chrome-plated linkage
Magnetic V base
Switchable magnet
Dial mounting hole Ø 3/8" With 3/8" to 8mm bushing
Delivered in individual packages, without dial gauge
Applications:
The standard Classic model for measurement probes and dial gauges can be used in any type of mechanical system.
Pre-tensioning cannot be set.
Articulated measuring stands Classic Line 3300-28 F + M magnetic, mechanical center lock and micro-fine adjustment
Size: 288/390mm
Brand: FISSO
Manufacturer number: 3328.15
Base: switch magnet
Base dimension: 60x50x55mm
op. range/height: 288/390mm
Height: 390mm
Fine adjustment: Ø 8mm
Adhesive force: 800N
Weight: 1.85kg
FISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, 3/8" Stem..........Indicator Not supplied
